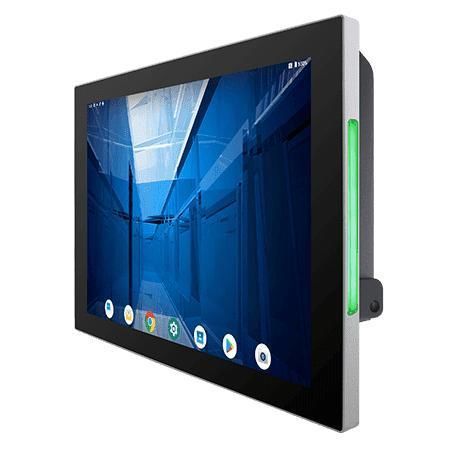

Multitouch screen panel PC R15IM3S-PCC3AC-POE

touch screenPCAP capacitive touch screen15"

Overview
Winmate R15IM3S-PCC3AC-POE is a 15-inch S Series HMI Panel PC powered by an ARM A53 quad-core processor, engineered for machine control, factory automation and operator HMI tasks. The unit features a 15.0-inch 1024 x 768 TFT LCD with projected capacitive multi-touch, fanless cooling for ultra-low power consumption, and Power over Ethernet support to simplify installation and centralized power management. Optional modules include a 2MP front camera and HF RFID reader for access control. The design is slim and true-flat with a built-in RGB LED status light bar for remote indication.

Key Features

• 15.0-inch 1024 x 768 TFT LCD with Projected Capacitive Multi-Touch (P-Cap)
• Fanless cooling and ultralow power consumption
• Power over Ethernet (PoE) support (IEEE 802.3at PD)
• Optional 2MP front camera
• Optional HF RFID reader (13.56 MHz)
• Slim true-flat design suitable for room booking, access control and information terminals
• Front protection to IP65 against dust and water
• Built-in RGB LED light bar indicator on both sides
• Supports Android or Linux operating systems

Power over Ethernet (PoE)
PoE delivers data and power over a single cable, reducing cabling complexity and enabling centralized power management—ideal for distributed access control and industrial automation installations.

Stylish Design
The S-series HMI is approximately 35% thinner than traditional panel PCs. Its true-flat glass surface is easy to clean and provides a modern look for both indoor and sheltered outdoor installations.

P-Cap Touch
The hardened glass cover lens provides scratch resistance and supports multi-touch input for responsive finger control and intuitive operator interaction.

LED Light Bar and HF RFID/NFC
Built-in RGB LED light bar indicates device or process status from a distance and supports programmable colors. Optional HF RFID/NFC enables limited access control for personnel management and security.

Front IP65
The front bezel is sealed to IP65 to protect against dust ingress and water splashes for reliable operation in industrial environments.

Certifications
CE, FCC

Accessories

• 100~240V AC to DC adapter
• Power cord
• Terminal block to 2.5Ø female adapter cable
• Open wire cable with terminal block connector
• VESA screws

Technical specifications

• Display - Size: 15.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 300 nits
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88, 88, 88, 88
• Display - Active Area: 304.1 x 228.1 mm
• System - Processor: ARM A53 (Quad Core 2.0 GHz)
• System - Memory: 4 GB LPDDR4
• System - Storage: eMMC onboard 32 GB
• System - Operating System: Android 11 (default, upgradeable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15; optional Linux Ubuntu Server 22.04
• System - WLAN: Support (optional)
• System - Bluetooth: Support (optional)
• System - RFID: HF RFID Reader 13.56 MHz (optional)
• System - Light Bar: Built-in RGB LED status light bar on both sides
• Mechanical - Dimension: 363.4 x 277.86 x 44.5 mm
• Mechanical - Cut out: 346.5 x 261 mm
• Mechanical - Weight: 3.6 kg
• Mechanical - Mounting: Panel mount and VESA mount
• Mechanical - Enclosure: Metal housing
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810H Method 516.8 Procedure I
• Environment - Vibration: MIL-STD-810H Method 514.8 Procedure I
• Environment - IP Rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• IO Ports - Serial: 1 x RS232/422/485 (default RS232)
• IO Ports - LAN: 1 x LAN 10/100/1000 Mbps
• IO Ports - Video: 1 x Micro HDMI output (optional)
• IO Ports - Audio: 2 x speaker
• IO Ports - SD Card Slot: 1 x Micro SD card slot (max 32 GB)
• Power - Power Rating: 12 V DC with terminal block (default); optional 9~36 V
• Power - Adapter: 12 V 50 W
• Power - PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Camera - Front Camera: 2 MP (optional)
