Towing chain G70 Tow Chain

steelcarbon steelwith hooks

Product overview

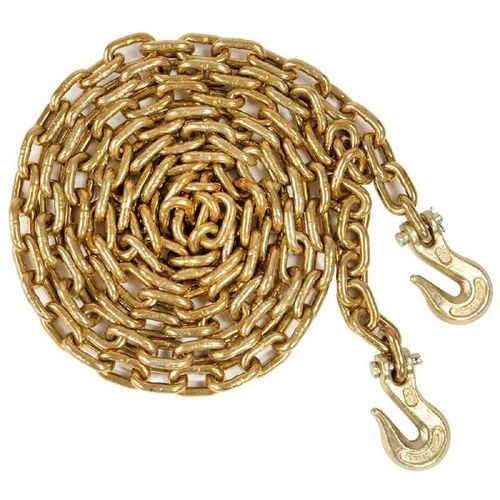

G70 Tow Chain, US Type NACM Grade 70 transport chain with clevis slip hook for trucks. Yellow plated option available. Manufactured from heat‑treated premium high carbon steel for increased hardenability and wear resistance, delivering an optimized strength‑to‑weight ratio. Suitable for truck load binding, towing, construction, logging and agricultural use. Complies with DOT requirements.

Introduction
SIZE: 1/4" ~ 3/4" || Dia. 7mm ~ 20mm
WLL: 3,150 lbs ~ 24,700 lbs || 1,430 kg ~ 11,200 kg
SURFACE: Self Colored; Galvanized; Hot Dip Galvanized, etc.
MATERIAL: Premium carbon steel, heat treated
SAFETY FACTOR: 4 × WLL

Parameter

• Grade of Chain: NACM / ASTM classification; Grade 70 for transport and towing applications.
• Working Load Limit (WLL): Maximum recommended working load in direct tension for undamaged chain.
• Proof Test: Minimum tensile force applied during manufacturing to verify integrity; not to be used as a design criterion.
• Minimum Breaking Force: Manufacturer test value showing the force at failure under controlled test; not a service guarantee.
• Overhead Lifting: This chain is intended for pull/towing and load binding; do not use for certified overhead lifting unless explicitly rated and certified for such use.

Specification Table
Header: Size (MM) | +/-MM | Inside Length A (MM) | A +/-MM | Outside Width B (MM) | B +/-MM | Working Load (KG) | Test Load (N) | Breaking Load (N) | Weight Per M (KG)
3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15
4 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27
5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43
6 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63
7 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86
8 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1
9 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41
10 | 65 | 3.2 | 40 | 2 | 630 | 12500 | 40000 | 1.75
11 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.11
12 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55
13 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95
16 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45
18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65
19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25
20 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7
22 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55
25 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.9
28 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9
32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2

Standards & Packing
Standard: G70 Tow Chain
MOQ: 100 Meters
Package: Carton + Steel Pallet

Technical characteristics / specifications

• Model: G70 Tow Chain
• Grade: Grade 70 (NACM / ASTM classification)
• Size range: 1/4" ~ 3/4" (Dia. 7 mm ~ 20 mm)
• Working Load Limit (WLL): 3,150 lbs ~ 24,700 lbs (1,430 kg ~ 11,200 kg)
• Material: Premium heat‑treated carbon steel
• Surface finish options: Self Colored, Galvanized, Hot Dip Galvanized
• Safety factor: 4 × WLL
• Typical applications: truck load binding, towing, construction, logging, farming
• MOQ: 100 meters
• Packaging: Carton + Steel Pallet
