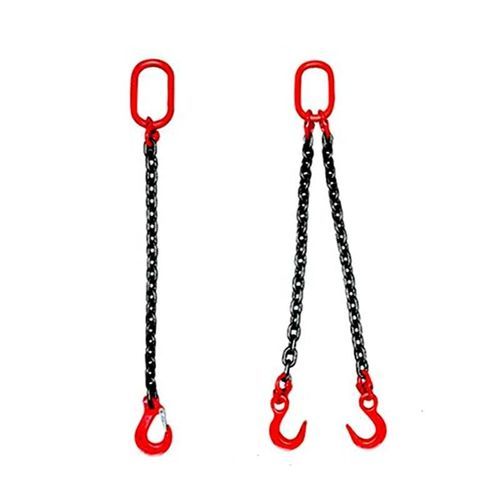

Chain sling Grade 100 DOG2-point4-point3-point
Add to favorites
Compare this product
Characteristics
- Type
- chain, 2-point, 4-point, 3-point, 1-point
- Material
- steel
- Load capacity
Max.: 234,900 lb
(106,548.8 kg)Min.: 2,700 lb
(1,224.7 kg)
Description
Introduction
Product Overview
The chain sling will be provided with a written certification. The serial number on the tag will coordinate with the Cert and your sales order number. This ensures complete traceability.
Parameter
Design Factor | 1-Leg Sling | 2-Leg Sling (3 cols) | 3-Leg & 4-Leg Slings (3 cols)
Angle | 90 Degrees | 60 Degrees | 45 Degrees | 30 Degrees | 60 Degrees | 45 Degrees | 30 Degrees
Dim | Load Factor: 1 | Load Factor: 1.7 | Load Factor: 1.4 | Load Factor: 1 | Load Factor: 2.6 | Load Factor: 2.1 | Load Factor: 1.45
7/32″ | 2,700 | 4,700 | 3,800 | 2,700 | 7,000 | 5,700 | 4,000
9/32″ | 4,300 | 7,400 | 6,100 | 4,300 | 11,200 | 9,100 | 6,400
5/16″ | 5,700 | 9,900 | 8,100 | 5,700 | 14,800 | 12,100 | 8,500
3/8″ | 8,800 | 15,200 | 12,400 | 8,800 | 22,900 | 18,700 | 13,200
1/2″ | 15,000 | 26,000 | 21,200 | 15,000 | 39,000 | 31,800 | 22,500
5/8″ | 22,600 | 39,100 | 32,000 | 22,600 | 58,700 | 47,900 | 33,900
3/4″ | 35,300 | 61,100 | 49,900 | 35,300 | 91,700 | 74,900 | 53,000
7/8″ | 42,700 | 74,000 | 60,400 | 42,700 | 110,900 | 90,600 | 64,000
1″ | 59,700 | 103,400 | 84,400 | 59,700 | 155,100 | 126,600 | 89,550
1-1/4″ | 90,400 | 156,600 | 127,800 | 90,400 | 234,900 | 191,800 | 135,600
Standards
Name: Grade 100 DOG Chain Sling – Double Leg w/ Oblong Master Link Top and Grab Hooks on Bottom
MOQ: 100 Meters
Package: Carton + Steel Pallet
Features / Technical specifications
- S = Sling Leg
- T = Triple Leg
- S = Sling Hook (w/latch)
- SL = Self Locking (Safety) Hook
- F = Foundry Hook
- D = Double Leg
- Q = Quad Leg
- G = Grab Hook
- O = Oblong Master Link
Product Overview
The chain sling will be provided with a written certification. The serial number on the tag will coordinate with the Cert and your sales order number. This ensures complete traceability.
Parameter
Design Factor | 1-Leg Sling | 2-Leg Sling (3 cols) | 3-Leg & 4-Leg Slings (3 cols)
Angle | 90 Degrees | 60 Degrees | 45 Degrees | 30 Degrees | 60 Degrees | 45 Degrees | 30 Degrees
Dim | Load Factor: 1 | Load Factor: 1.7 | Load Factor: 1.4 | Load Factor: 1 | Load Factor: 2.6 | Load Factor: 2.1 | Load Factor: 1.45
7/32″ | 2,700 | 4,700 | 3,800 | 2,700 | 7,000 | 5,700 | 4,000
9/32″ | 4,300 | 7,400 | 6,100 | 4,300 | 11,200 | 9,100 | 6,400
5/16″ | 5,700 | 9,900 | 8,100 | 5,700 | 14,800 | 12,100 | 8,500
3/8″ | 8,800 | 15,200 | 12,400 | 8,800 | 22,900 | 18,700 | 13,200
1/2″ | 15,000 | 26,000 | 21,200 | 15,000 | 39,000 | 31,800 | 22,500
5/8″ | 22,600 | 39,100 | 32,000 | 22,600 | 58,700 | 47,900 | 33,900
3/4″ | 35,300 | 61,100 | 49,900 | 35,300 | 91,700 | 74,900 | 53,000
7/8″ | 42,700 | 74,000 | 60,400 | 42,700 | 110,900 | 90,600 | 64,000
1″ | 59,700 | 103,400 | 84,400 | 59,700 | 155,100 | 126,600 | 89,550
1-1/4″ | 90,400 | 156,600 | 127,800 | 90,400 | 234,900 | 191,800 | 135,600
Standards
Name: Grade 100 DOG Chain Sling – Double Leg w/ Oblong Master Link Top and Grab Hooks on Bottom
MOQ: 100 Meters
Package: Carton + Steel Pallet
Features / Technical specifications
- Commercial name: Grade 100 DOG Chain Sling
- Brand: TOPONE CHAIN
- Sling styles available: 1-leg, 2-leg (double), 3-leg (triple), 4-leg (quad)
- Top fitting: Oblong Master Link (O)
- Bottom fittings: Grab Hooks (G) or other hook types as specified (S, SL, F)
- Chain grade: Grade 100
- Serial number: Individualized serial number on tag to match written certification for traceability
- Certification: Written certification provided with the sling
- Parameters: Detailed load factors and working load limits provided per chain size and sling configuration (see parameter table above)
- MOQ: 100 meters per order
- Packing: Carton plus steel pallet
