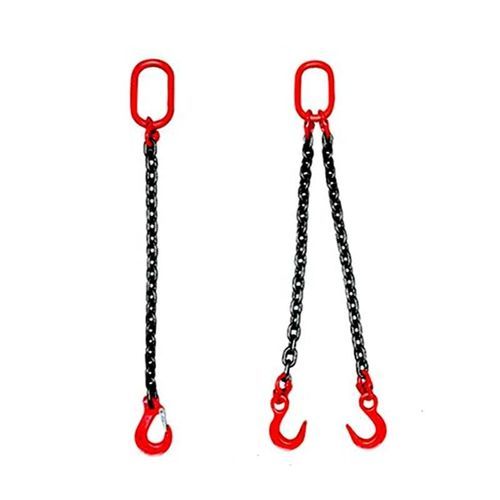

Chain sling Grade 80 SFG1-pointsteel
Add to favorites
Compare this product
Characteristics
- Type
- chain, 1-point
- Material
- steel
- Load capacity
Max.: 187,800 lb
(85,184.6 kg)Min.: 2,100 lb
(952.5 kg)
Description
Introduction
Product overview
Parameters
Design factor | 1-Leg (90°) | 2-Leg (60°) | 2-Leg (45°) | 2-Leg (30°) | 3/4-Leg (60°) | 3/4-Leg (45°) | 3/4-Leg (30°)
Load factor | 1 | 1.7 | 1.4 | 1 | 2.6 | 2.1 | 1.45
Chain Diameter 7/32" | 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200
Chain Diameter 9/32" | 3,500 | 6,100 | 4,900 | 3,500 | 9,100 | 7,400 | 5,200
Chain Diameter 5/16" | 4,500 | 7,800 | 6,400 | 4,500 | 11,700 | 9,500 | 6,800
Chain Diameter 3/8" | 7,100 | 12,300 | 10,000 | 7,100 | 18,400 | 15,100 | 10,600
Chain Diameter 1/2" | 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000
Chain Diameter 5/8" | 18,100 | 31,300 | 25,600 | 18,100 | 47,000 | 38,400 | 27,100
Chain Diameter 3/4" | 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,400
Chain Diameter 7/8" | 34,200 | 59,200 | 48,400 | 34,200 | 88,900 | 72,500 | 51,300
Chain Diameter 1" | 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,200 | 71,500
Chain Diameter 1-1/4" | 72,300 | 125,200 | 102,200 | 72,300 | 187,800 | 153,400 | 108,500
Standards
Technical specifications
- S = Sling Leg
- T = Triple Leg
- S = Sling Hook (w/latch)
- SL = Self Locking (Safety) Hook
- F = Foundry Hook
- D = Double Leg
- Q = Quad Leg
- G = Grab Hook
- O = Oblong Master Link
Product overview
- Sling style
- Individualized serial number
- Chain size & grade
- Exact sling length
- Working load limit (WLL)
Parameters
Design factor | 1-Leg (90°) | 2-Leg (60°) | 2-Leg (45°) | 2-Leg (30°) | 3/4-Leg (60°) | 3/4-Leg (45°) | 3/4-Leg (30°)
Load factor | 1 | 1.7 | 1.4 | 1 | 2.6 | 2.1 | 1.45
Chain Diameter 7/32" | 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200
Chain Diameter 9/32" | 3,500 | 6,100 | 4,900 | 3,500 | 9,100 | 7,400 | 5,200
Chain Diameter 5/16" | 4,500 | 7,800 | 6,400 | 4,500 | 11,700 | 9,500 | 6,800
Chain Diameter 3/8" | 7,100 | 12,300 | 10,000 | 7,100 | 18,400 | 15,100 | 10,600
Chain Diameter 1/2" | 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000
Chain Diameter 5/8" | 18,100 | 31,300 | 25,600 | 18,100 | 47,000 | 38,400 | 27,100
Chain Diameter 3/4" | 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,400
Chain Diameter 7/8" | 34,200 | 59,200 | 48,400 | 34,200 | 88,900 | 72,500 | 51,300
Chain Diameter 1" | 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,200 | 71,500
Chain Diameter 1-1/4" | 72,300 | 125,200 | 102,200 | 72,300 | 187,800 | 153,400 | 108,500
Standards
- Name: Grade 80 SFG Chain Sling – Single Leg w/ Foundry Hook on Top and Grab Hook on Bottom
- MOQ: 100 Meters
- Package: Carton + Steel Pallet
Technical specifications
- Model designation: Grade 80 SFG Chain Sling
- Configuration: Single leg sling with foundry hook on top and grab hook on bottom (other hook types available as per codes)
- Available chain diameters: 7/32"; 9/32"; 5/16"; 3/8"; 1/2"; 5/8"; 3/4"; 7/8"; 1"; 1-1/4"
- Working load capacities provided per chain diameter and sling-leg configuration (see Parameters)
- Design/load factors vary by sling configuration and angle (values provided in Parameters)
- Each sling supplied with written certification and traceable serial number on tag
- Packaging: Carton plus steel pallet
- Minimum order quantity: 100 meters
