Chain sling Grade 80 TOF

3-pointsteel

Product

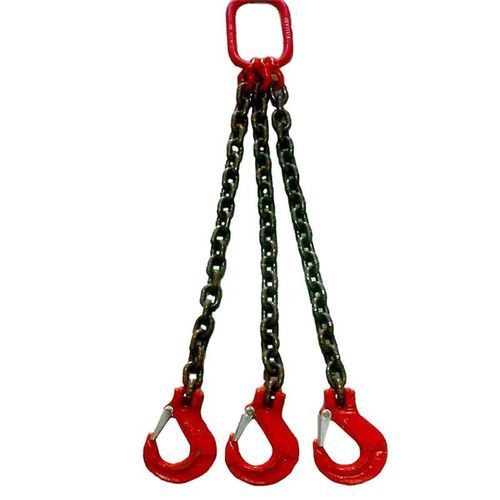

• TOF chain sling Grade 80 — triple-leg sling supplied with quad oblong master link on top and foundry hooks on bottom.
• Sling style: Triple Leg (T). Individual serial number on tag for traceability.
• Typical supplied items/options: sling size & grade, exact sling length, working load limit (WLL).

Introduction

• S = Sling Leg
• T = Triple Leg
• S (in other context) = Sling Hook (w/latch)
• SL = Self Locking (Safety) Hook
• F = Foundry Hook
• D = Double Leg
• Q = Quad Leg
• G = Grab Hook
• O = Oblong Master Link

Certification & Traceability

• The chain sling is provided with a written certification.
• The serial number on the tag will coordinate with the certificate and the sales order number to ensure complete traceability.

Parameters (Load capacities by chain diameter and sling configuration)
Design Factor: 4:1

Column mapping: 1-Leg Sling (90°) | 2-Leg Sling (60°) | 2-Leg Sling (45°) | 2-Leg Sling (30°) | 3-Leg & 4-Leg Slings (60°) | 3-Leg & 4-Leg Slings (45°) | 3-Leg & 4-Leg Slings (30°)

Load Factors: 1-Leg (90°): Load Factor = 1 | 2-Leg (60°): 1.7 | 2-Leg (45°): 1.4 | 2-Leg (30°): 1 | 3/4-Leg (60°): 2.6 | 3/4-Leg (45°): 2.1 | 3/4-Leg (30°): 1.45

Chain diameter rows:
7/32″ : 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200
9/32″ : 3,500 | 6,100 | 4,900 | 3,500 | 9,100 | 7,400 | 5,200
5/16″ : 4,500 | 7,800 | 6,400 | 4,500 | 11,700 | 9,500 | 6,800
3/8″ : 7,100 | 12,300 | 10,000 | 7,100 | 18,400 | 15,100 | 10,600
1/2″ : 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000
5/8″ : 18,100 | 31,300 | 25,600 | 18,100 | 47,000 | 38,400 | 27,100
3/4″ : 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,400
7/8″ : 34,200 | 59,200 | 48,400 | 34,200 | 88,900 | 72,500 | 51,300
1" : 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,200 | 71,500
1-1/4" : 72,300 | 125,200 | 102,200 | 72,300 | 187,800 | 153,400 | 108,500

Standards

• Name: Grade 80 TOF Chain Sling – Triple Leg w/ Quad Oblong Master Link on Top and Foundry Hooks on Bottom
• MOQ: 100 Meters
• Package: Carton + Steel Pallet

Technical specifications

• Product type: TOF chain sling (triple leg) with quad oblong master link (top) and foundry hooks (bottom)
• Grade: Grade 80
• Sling style: Triple leg (T)
• Available hook types: Foundry Hook (F), Sling Hook (with latch), Self Locking (SL) Hook
• Master link: Quad oblong master link (O)
• Serial number: Individualized serial number on tag for traceability
• Certification: Written certificate provided matching serial number and sales order
• MOQ: 100 Meters
• Packaging: Carton + Steel Pallet
• Load capacity table: See Parameters section above for per-diameter capacities across sling configurations and angles
