LED floodlight JNFLM20-600S-6500-A8-DIM

HIDHPSIP65

Short description

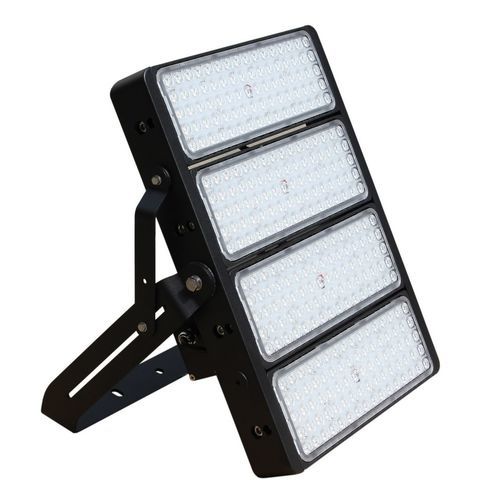

600W modular LED flood light, configuration 2×4 modules, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, beam 140×140°, IP65. Suitable replacement for 1000W metal halide / HID / HPS luminaires.

Features

• Configuration: 2×4 modules
• LED type: Philips Lumileds (Luxeon TX)
• LED driver: Meanwell driver(s)
• Dimming capability: Dimmable
• Beam angle: 140×140°
• IP rating: IP65
• Replaces 1000W metal halide / HID / HPS

Specification details (summary)
600W modular LED flood light, configuration 2×4 modules, with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable. IP65. Replaces 1000W metal halide / HID / HPS.

Technical specifications

• Product SKU: JNFLM20-600S-6500-A8-DIM
• Power Consumption: 600 W
• System Power: 606 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• Beam Angle (°): 140x140°
• Beam Angle Square: 140x140°
• IP Rating: IP65
• IK Impact Rating: IK08
• Color Rendering Index (CRI): >80
• Color Temperature (K): 6000
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens Output: 78,000 lm
• Power Factor: >0.95
• LED Driver Brand: Meanwell driver(s)
• Number of LED Modules: 1 modules
• Housing Colour: Black
• Housing Material: Die-cast Aluminum
• Mounting Type: Adjustable Bracket Mount
• Fixture Height: 113 mm
• Fixture Length: 326 mm
• Fixture Width: 128 mm
• Product Dimensions (mm): 326x128x113 mm
• Product Weight: 17.2 kg
• Net Weight (kg): 17.2 kg
• Export Carton Dimensions (mm): 400x360x230
• Products per Carton: 1
• Export Carton Gross Weight (kg): 8 kg
• Environmental / Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Warranty Period (Years): 5
