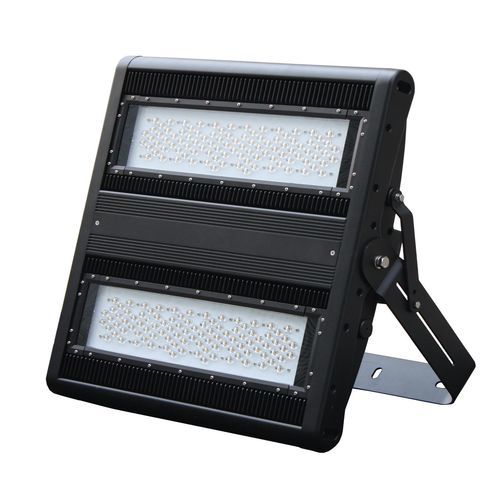

LED floodlight JNFL25-1800S-5000-A6-ND

HIDIP65IK 07

Short description
1800 W LED flood light equipped with Philips Lumileds and Meanwell driver. Non-dimmable. IP65. Replaces 2500 W metal halide/HID luminaires. Total output 211,000 lm, 5000 K (cool white).

Features

• LED Type: Philips Lumileds
• Driver: Meanwell HLG-1000H
• Dimming: Non-dimmable
• IP Rating: IP65
• Beam angle (square): 85×135° (dual lens)
• Beam angle (single): 85°
• Colour Temperature: 5000 K (cool white)
• Total Lumens Output: 211,000 lm
• Power Factor: >0.95
• Lifespan: 50,000 hours
• Warranty: 5 years

Product Specifications
Product SKU: JNFL25-1800S-5000-A6-ND
System Power: 1800 W
Power Consumption: 1700 W
Input Voltage: 100–305 V
Beam Angle (°): 85° (single) / 85×135° (square, dual lens)
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 211,000 lm
Color Temperature (K): 5000
IK Impact Rating: IK07
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
Number of LED Modules: 1
Environmental Temperature Range: -20°C to 45°C
Mounting Type: Adjustable Bracket
Fixture Height (mm): 161 mm
Fixture Length (mm): 788 mm
Fixture Width (mm): 665 mm
Product Weight: 42 kg
LED Driver Brand: Meanwell HLG-1000H
Working Humidity Range: 10%–90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Net Weight (kg): 42 kg
Export Carton Dimensions (mm): 950 × 880 × 270
Products per Carton: 1
Export Carton Gross Weight (kg): 41 kg
Fixture Height (mm): 161
Fixture Width (mm): 665
Fixture Length (mm): 788

Technical specifications

• SKU: JNFL25-1800S-5000-A6-ND
• System Power: 1800 W
• Power Consumption: 1700 W
• Input Voltage: 100–305 V
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Total Lumens: 211,000 lm
• Colour Temperature: 5000 K
• CRI: >70
• Beam Angle (square): 85×135°
• IP Rating: IP65
• IK Rating: IK07
• Power Factor: >0.95
• Mounting: Adjustable Bracket
• Dimensions (H×L×W): 161 mm × 788 mm × 665 mm
• Weight: 42 kg
• Operating Temperature: -20°C to 45°C
• Working Humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
