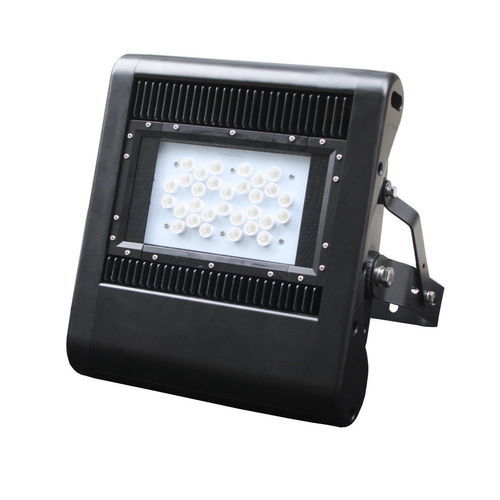

LED floodlight JNFL10-060S-3000-A5-DIM

HIDHPSIP65

Short description
60 Watt LED flood light equipped with original Philips Lumileds LEDs and a Meanwell HLG-60H driver. Dimmable. IP65-rated for outdoor use. Suitable to replace 150 W metal halide/HID/HPS fixtures.

Features

• Warm white (3000 K)
• Dimmable
• Single lens / PCB design
• Beam angle: 60×135° (asymmetric)
• Original Philips Lumileds LEDs
• Meanwell HLG-60H LED driver
• IP65 rated for outdoor use
• IK07 impact rating
• High lumen output (9000 lm)
• Power factor >0.95
• 5 year warranty

Product Specifications
Product SKU: JNFL10-060S-3000-A5-DIM
Power Consumption: 60 W
Input Voltage: 100-305 V
Beam Angle (°): 60°
Beam Angle Square: 60×135°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 9000 lm
Colour Temperature (K): 3000 K
IK Impact Rating: IK07
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
System Power: 66 W
Number of LED Modules: 1 modules
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket
Fixture Height (mm): 366 mm
Fixture Length (mm): 327 mm
Fixture Width (mm): 91 mm
Product Weight: 4 kg
LED Driver Brand: Meanwell HLG-60H
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Net Weight (kg): 4 kg
Export Carton Dimensions (mm): 450 x 400 x 380
Products per Carton: 2
Export Carton Gross Weight (kg): 6 kg
Fixture Height (mm): 366
Fixture Width (mm): 91
Fixture Length (mm): 327

Technical specifications

• Power: 60 W
• System Power: 66 W
• Voltage: 100-305 V
• Lumens: 9000 lm
• Colour Temperature: 3000 K (warm white)
• CRI: >70
• LED: Philips Lumileds
• Driver: Meanwell HLG-60H
• Beam: 60×135° (single lens / PCB)
• IP rating: IP65
• IK rating: IK07
• Dimming: Dimmable
• Power Factor: >0.95
• Warranty: 5 years
• Mounting: Adjustable Bracket
• Dimensions (H×L×W): 366 mm × 327 mm × 91 mm
• Weight: 4 kg
• Operating Temp: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Lifespan: 50,000 hours
