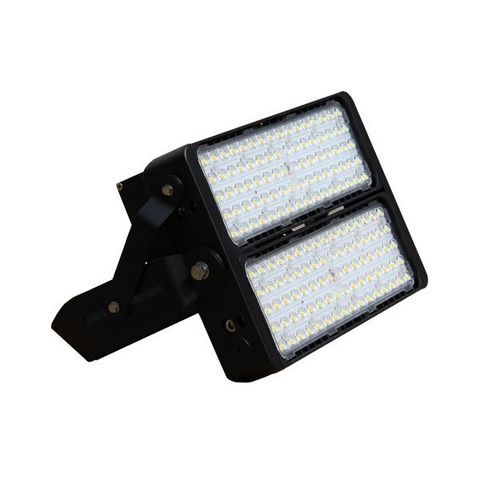

LED floodlight JNFLM14-200S-6500-A5-DIM

HIDHPSIP65

Short description
Modular 200W LED flood light in a 1×3 module configuration, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65 and IK08 rated, designed to replace 400W metal halide/HID/HPS luminaires in outdoor industrial applications.

Features
Modular construction for flexible photometry and maintenance. Precision 30x100° beam for façade and linear area lighting. Integrated Meanwell driver(s) and Philips Lumileds (Luxeon TX) LEDs deliver 26000 lm total luminous flux. Die-cast aluminium housing with adjustable bracket mount for reliable outdoor installation. Dimmable control for energy management and photometric adjustment.

Product Specifications
Product SKU : JNFLM14-200S-6500-A5-DIM
Power Consumption : 200 W
Input Voltage : 100-277V
Beam Angle (°) : 30x100°
IP Rating : IP65
Color Rendering Index : >80
LED Type : Philips Lumileds (Luxeon TX)
Total Lumens Output : 26000 lm
Color Temperature (K) : 6000 K
IK Impact Rating : IK08
Dimming Capability : Dimmable
Housing Colour : Black
Power Factor : >0.95
Input Frequency : 50/60 Hz
Housing Material : Die-cast Aluminum
Warranty Period (Years) : 5
System Power : 206 W
Number of LED Modules : 1 modules
Beam Angle Square : 30x100°
Environmental Temperature Range : -20°C ~ 45°C
Mounting Type : Adjustable Bracket Mount
Fixture Height (mm) : 113 mm
Fixture Length (mm) : 326 mm
Fixture Width (mm) : 128 mm
Product Weight : 8.2 kg
LED Driver Brand : Meanwell driver(s)
Working Temperature Range : -20°C ~ 45°C
Working Humidity Range : 10%-90% RH
Lifespan (Hours) : 50,000 hours

Technical specifications

• SKU: JNFLM14-200S-6500-A5-DIM
• Power Consumption: 200 W
• System Power: 206 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Lumens: 26000 lm
• Color Temperature: 6000 K (cool white)
• CRI: >80
• Beam Angle: 30x100°
• IK Rating: IK08
• IP Rating: IP65
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting: Adjustable Bracket Mount
• Fixture Dimensions (L×W×H): 326×128×113 mm
• Product Weight: 8.2 kg
• Operating Temperature Range: -20°C to 45°C
• Working Humidity: 10%-90% RH
• Power Factor: >0.95
• Warranty: 5 years
• Lifespan: 50,000 hours
