LED floodlight JNFLM18/6-400S-6500-A7-ND

HIDHPSIP65

Product Description

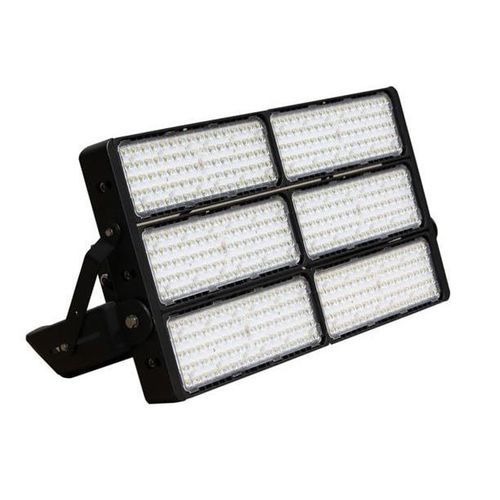

The JNFLM18/6-400S-6500-A7-ND is a 400W modular LED flood light in a 1×6 module configuration. It integrates Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable. IP65 rated enclosure. Designed as an energy-efficient replacement for 1000W metal halide/HID/HPS luminaires in industrial and outdoor applications.

Features

• Configuration: 1×6 modules
• LED: Philips Lumileds (Luxeon TX)
• LED Driver: Meanwell driver(s)
• IP Rating: IP65
• Replacement for 1000W metal halide/HID/HPS
• Beam angle: 50×140°

Product Specifications
Product SKU: JNFLM18/6-400S-6500-A7-ND
Power Consumption: 400 W
Input Voltage: 100-277V
Beam Angle (°): 50x140°
IP Rating: IP65
Color Rendering Index (CRI): >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 406 W
Number of LED Modules: 1 module
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Dimensions (HxLxW): 113 x 326 x 128 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours
