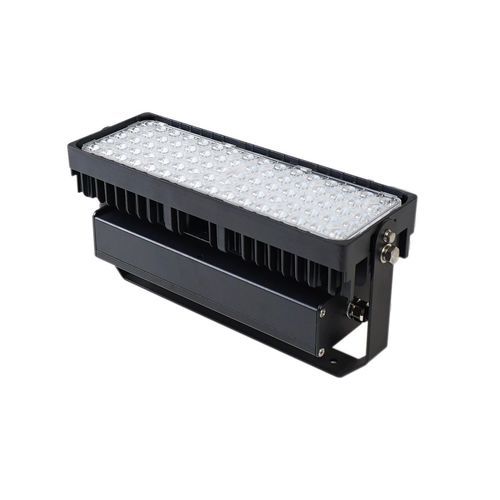

LED floodlight JNFLM12-100S-6500-A1-ND

HIDHPSIP65

Short description
100W modular LED flood light, configuration 1×2 modules, equipped with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Non-dimmable. IP65. Suitable as a replacement for 250W metal halide/HID/HPS fixtures.

Applications

• Industrial and warehouse area lighting
• Exterior façade and perimeter lighting
• Loading yards and logistic centers
• Sports and training grounds (small to medium scale)

Product specifications

• Product SKU: JNFLM12-100S-6500-A1-ND
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277 V
• Input Frequency: 50/60 Hz
• Beam Angle (°): 15×15°
• Beam Angle Square: 15×15°
• IP Rating: IP65
• IK Impact Rating: IK08
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Total Lumens Output: 13,000 lm
• Color Temperature: 6000 K
• Color Rendering Index (CRI): >80
• Dimming Capability: Non-dimmable
• Power Factor: >0.95
• Housing Material: Die-cast aluminum
• Housing Colour: Black
• Number of LED Modules: 1 module (configuration 1×2 modules)
• Mounting Type: Adjustable bracket mount
• Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
• Product Weight: 6 kg
• Export Carton Dimensions (mm): 400 × 360 × 230
• Products per Carton: 1
• Export Carton Gross Weight: 8 kg
• Working / Environmental Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty Period: 5 years

Specification details (summary)
Modular 100W LED flood light in 1×2 module configuration, original Philips Lumileds (Luxeon TX) LEDs, Meanwell driver(s), non-dimmable, IP65 protection. Delivers approximately 13,000 lm at 6000 K and replaces typical 250W metal halide/HID/HPS solutions.
