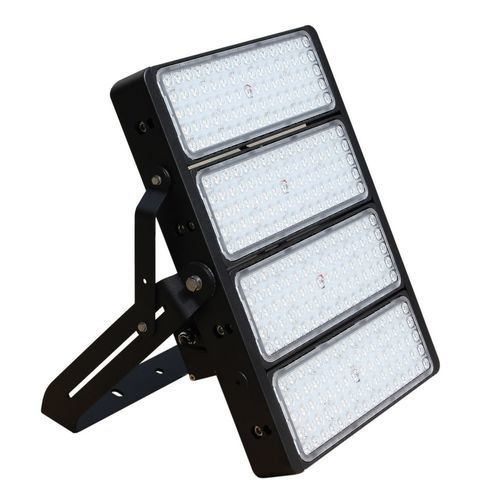

LED floodlight JNFLM20-600S-6500-A2-DIM

HIDHPSIP65

Short description
600W modular LED flood light in 2×4 module configuration with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65-rated housing, IK08 impact resistance. Designed to replace 1000W metal halide/HID/HPS for industrial and outdoor applications.

Applications & advantages

• High-output solution (78,000 lm) for large-area lighting: yards, warehouses, sports facilities and industrial sites
• Energy-efficient replacement for 1000W HID, reducing power and maintenance costs
• Adjustable bracket mount for targeted aiming and flexible installation
• Wide operating range (-20°C to 45°C) and 10–90% RH humidity tolerance for outdoor use

Technical specifications

• Product SKU: JNFLM20-600S-6500-A2-DIM
• Power Consumption: 600 W (System Power: 606 W)
• Input Voltage: 100–277 V, 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver: Meanwell driver(s), dimmable
• Total Lumens Output: 78,000 lm
• Color Temperature: 6000 K (cool white)
• CRI: >80
• Beam Angle: 30×30° (square)
• IP Rating: IP65
• IK Rating: IK08
• Power Factor: >0.95
• Lifespan: 50,000 hours
• Warranty: 5 years
• Housing Material/Colour: Die-cast aluminum / Black
• Dimensions (L×W×H): 326×128×113 mm
• Product Weight (Net): 17.2 kg
• Operating Temperature: -20°C ~ 45°C
• Working Humidity: 10%–90% RH
• Mounting Type: Adjustable bracket mount

Installation & compliance
Unit supplied with adjustable bracket for bolted mounting. Input range 100–277 V supports common industrial supplies. Dimming handled by supplied Meanwell driver(s); consult driver documentation for compatible dimming protocol. IP65 and IK08 ratings ensure suitability for exposed outdoor industrial environments.

Packaging & shipping

• Product dimensions (mm): 326×128×113
• Net weight: 17.2 kg
• Export carton dimensions (mm): 400×360×230
• Products per carton: 1
• Export carton gross weight: 8 kg

Technical features

• Configuration: 2×4 LED modules
• SKU: JNFLM20-600S-6500-A2-DIM
• Power consumption: 600 W
• System power: 606 W
• Input voltage: 100–277 V
• Input frequency: 50/60 Hz
• Beam angle (square): 30×30°
• IP rating: IP65
• IK rating: IK08
• LED: Philips Lumileds (Luxeon TX)
• LED driver brand: Meanwell
• Total luminous flux: 78,000 lm
• Color temperature: 6000 K
• CRI: >80
• Power factor: >0.95
• Housing: Die-cast aluminum, black
• Mounting: Adjustable bracket
• Fixture dimensions: 326×128×113 mm
• Net weight: 17.2 kg
• Export carton: 400×360×230 mm
• Products per carton: 1
• Export carton gross weight: 8 kg
• Operating temperature: -20°C ~ 45°C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
