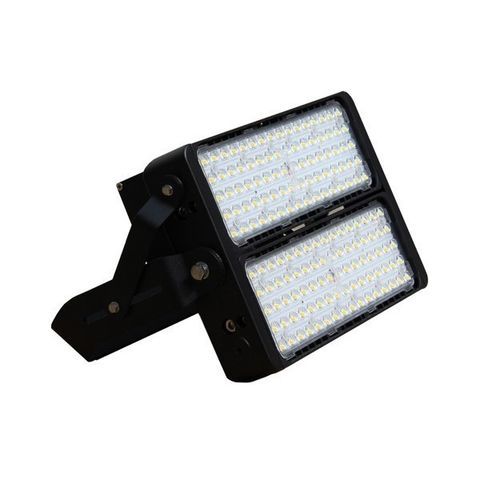

LED floodlight JNFLM14-200S-6500-A4-ND

HIDHPSIP65

Short description
200W modular LED flood light in 1x3 module configuration, fitted with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable. IP65. Replaces 400W metal halide/HID/HPS.

Features

• 200 W power, cool white (6000 K)
• 90x90° square beam
• IP65 protection and IK08 impact resistance
• Philips Lumileds (Luxeon TX) LEDs; Meanwell driver(s)
• Adjustable bracket mount for flexible aiming
• Estimated life 50,000 hours; 5-year warranty

Product Specifications

• SKU: JNFLM14-200S-6500-A4-ND
• Power consumption: 200 W
• Input voltage: 100-277 V
• Beam angle: 90x90°
• IP rating: IP65
• Color Rendering Index (CRI): >80
• LED type: Philips Lumileds (Luxeon TX)
• Total lumen output: 26,000 lm
• Color temperature: 6000 K
• IK impact rating: IK08
• Dimming: Non-dimmable (some documents indicate dimmable — verify with supplier)
• Housing colour: Black
• Power factor: >0.95
• Input frequency: 50/60 Hz
• Housing material: Die-cast aluminum
• Warranty period: 5 years
• System power: 206 W
• Number of LED modules: 1
• Operating temperature: -20°C to 45°C
• Working humidity: 10% - 90% RH
• Lifespan: 50,000 hours
• Mounting type: Adjustable bracket mount
• Fixture dimensions (L×W×H): 326 × 128 × 113 mm
• Product weight: 8.2 kg
• LED driver brand: Meanwell

Packaging & Shipping

• Product dimensions (mm): 326 × 128 × 113
• Net weight: 8.2 kg
• Export carton dimensions (mm): 400 × 360 × 230
• Products per carton: 1
• Export carton gross weight: 8 kg

Specification Details
200W modular LED flood light, configuration 1x3 modules, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Designed for exterior and industrial lighting, non-dimmable and IP65-rated, suitable as a direct replacement for 400W metal halide/HID/HPS fixtures.

Technical specifications

• SKU: JNFLM14-200S-6500-A4-ND
• Power Consumption: 200 W
• Input Voltage: 100-277V
• Beam Angle (°): 90x90°
• IP Rating: IP65
• Color Rendering Index: >80
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens Output: 26000 lm
• Color Temperature (K): 6000
• IK Impact Rating: IK08
• Dimming Capability: Non-dimmable (verify)
• Housing Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Housing Material: Die-cast Aluminum
• Warranty Period (Years): 5
• System Power: 206 W
• Number of LED Modules: 1
• Environmental Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10%-90% RH
• Lifespan (Hours): 50,000 hours
• Mounting Type: Adjustable Bracket Mount
• Fixture Dimensions (LxWxH): 326 x 128 x 113 mm
• Product Weight: 8.2 kg
• LED Driver Brand: Meanwell
