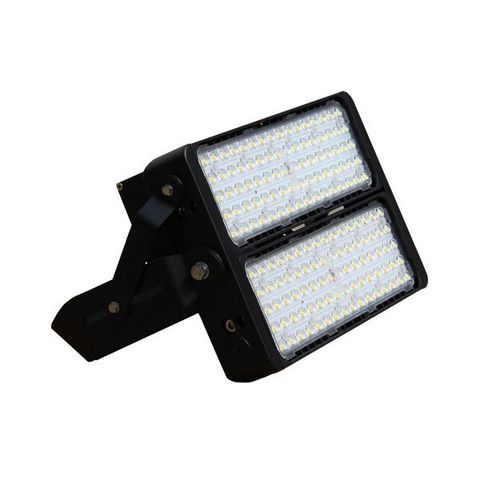

LED floodlight JNFLM14-200S-6500-A8-DIM

HIDHPSIP65

Short description
200W modular LED flood light, configuration 1×3 modules, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable. IP65, IK08. Replaces 400 W metal halide/HID/HPS fixtures. Total output 26,000 lm at 6000 K. Adjustable bracket for outdoor mounting in industrial and architectural applications.

Product Specifications
Product SKU: JNFLM14-200S-6500-A8-DIM
Power Consumption: 200 W
System Power: 206 W
Input Voltage: 100-277V
Input Frequency: 50/60 Hz
Beam Angle: 140×140°
IP Rating: IP65
IK Impact Rating: IK08
LED Type: Philips Lumileds (Luxeon TX)
LED Driver Brand: Meanwell driver(s)
Color Temperature: 6000 K (cool white)
Total Lumens Output: 26,000 lm
Color Rendering Index: >80
Power Factor: >0.95
Housing Material: Die-cast Aluminum
Housing Colour: Black
Lifespan (Hours): 50,000 hours
Warranty Period (Years): 5
Fixture Dimensions (HxLxW): 113 x 326 x 128 mm
Product Weight: 8.2 kg
Mounting Type: Adjustable Bracket Mount
Working Temperature Range: -20°C to 45°C
Working Humidity Range: 10%-90% RH

Packaging & Shipping
Product Dimensions (mm): 326 x 128 x 113 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 400 x 360 x 230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Additional information
Power (W): 200
Voltage: 100-277V
Beam Angle (°): 140×140°
IP Rating: IP65
CRI: >80
Lumens (lm): 26,000
Colour Temperature (K): 6000
IK Rating: IK08
Dimming: Dimmable
Power Factor: >0.95
Housing Material: Die-cast Aluminum
Warranty (yr): 5

Technical features

• SKU: JNFLM14-200S-6500-A8-DIM
• Power Consumption: 200 W
• System Power: 206 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• Beam Angle: 140×140°
• Total Lumens Output: 26,000 lm
• Colour Temperature: 6000 K (cool white)
• CRI: >80
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Dimming Capability: Dimmable
• IP Rating: IP65
• IK Rating: IK08
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Power Factor: >0.95
• Number of LED Modules: 1 module (configuration 1×3 modules)
• Mounting Type: Adjustable Bracket Mount
• Fixture Dimensions (HxLxW): 113 x 326 x 128 mm
• Product Weight: 8.2 kg
• Working Temperature Range: -20°C to 45°C
• Working Humidity Range: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
• Packaging – Export Carton Dimensions: 400 x 360 x 230 mm
• Packaging – Products per Carton: 1
• Packaging – Export Carton Gross Weight: 8 kg
