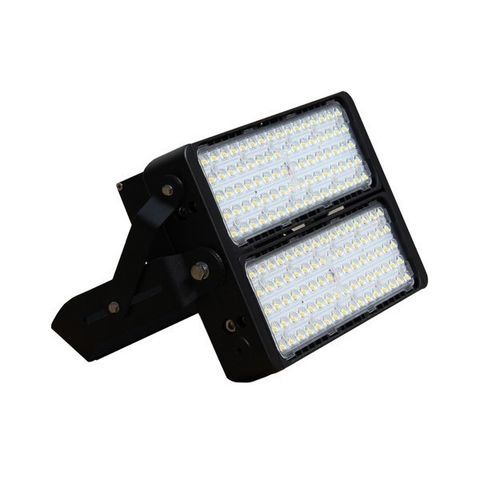

LED floodlight JNFLM14-200S-6500-A5-ND

HIDHPSIP65

Product overview
200W modular LED flood light, configuration 1×3 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Non-dimmable. IP65. Replaces 400 Watt metal halide/HID/HPS.

Key features

• Power consumption: 200 W
• System power: 206 W
• LED type: Philips Lumileds (Luxeon TX)
• Total luminous flux: 26,000 lm
• Colour temperature: 6,000 K (cool white)
• Beam angle: 30×100°
• IP rating: IP65
• IK impact rating: IK08
• Power factor: >0.95
• LED driver: Meanwell driver(s)
• Housing material: Die-cast aluminum (black)
• Mounting: Adjustable bracket mount
• Lifespan: 50,000 hours
• Warranty: 5 years

Product specifications (table)
Product SKU: JNFLM14-200S-6500-A5-ND
Power Consumption: 200 W
System Power: 206 W
Input Voltage: 100-277 V
Beam Angle (°): 30x100°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 26,000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
Number of LED Modules: 1 modules
Beam Angle Square: 30x100°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 8.2 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• Power: 200 W (system power 206 W)
• Lumens: 26,000 lm
• LED: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Colour temperature: 6000 K
• Beam angle: 30×100°
• IP rating: IP65
• IK rating: IK08
• Power factor: >0.95
• Input voltage: 100–277 V, 50/60 Hz
• Housing: Die-cast aluminum, black
• Mounting: Adjustable bracket mount
• Ambient/working temperature: -20°C to 45°C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
