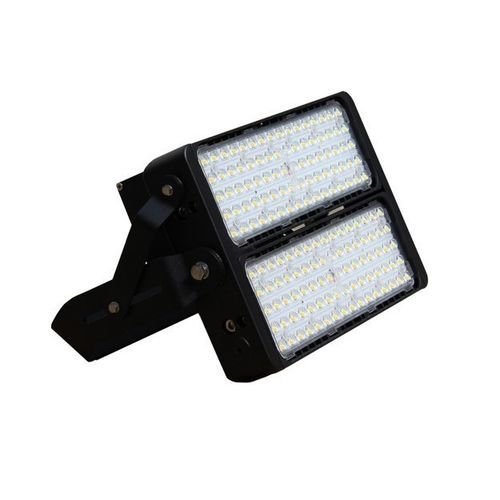

LED floodlight JNFLM14-200S-5000-A8-ND

HIDHPSIP65

Description
200W modular LED flood light with 1×3 modules, equipped with original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable. IP65-rated for outdoor use. Replaces 400W metal halide/HID/HPS luminaires in industrial and outdoor applications.

Features

• Modular LED flood light (1×3 modules)
• Original Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• Non-dimmable
• IP65 protection for exterior installations

Product Specifications
Product SKU: JNFLM14-200S-5000-A8-ND
Power Consumption: 200 W (system power 206 W)
Input Voltage: 100-277V
Beam Angle (°): 140×140°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 26,000 lm
Color Temperature (K): 6000 K (cool white)
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast aluminum
Warranty Period: 5 years
Number of LED Modules: 1×3 modules
Environmental Temperature Range: -20°C to 45°C
Mounting Type: Adjustable bracket mount
Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
Product Weight: 8.2 kg
Lifespan: 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326×128×113 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 400×360×230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• SKU: JNFLM14-200S-5000-A8-ND
• Rated Power: 200 W (system power 206 W)
• Input Voltage: 100–277V
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Lumen Output: 26,000 lm
• Colour Temperature: 6000 K (cool white)
• CRI: >80
• Beam Angle: 140×140° (square)
• IK Rating: IK08
• IP Rating: IP65
• Power Factor: >0.95
• Mounting: Adjustable bracket
• Housing: Die-cast aluminum, black
• Operating Temperature Range: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
• Dimensions (L×W×H): 326 × 128 × 113 mm
• Weight: 8.2 kg
