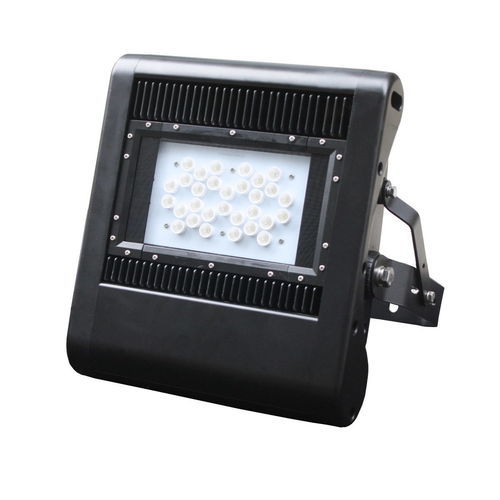

LED floodlight JNFL10-060S-3000-A3-ND

HIDHPSIP65

Product Overview
60 W LED flood light with Philips Lumileds LEDs and Meanwell HLG-60H driver. Non-dimmable, IP65-rated housing and IK07 impact resistance. Designed to replace 150 W metal halide/HID/HPS luminaires in industrial and outdoor installations.

Key Features

• 60 W nominal (system power 66 W)
• Philips Lumileds LED modules for consistent output
• Meanwell HLG-60H LED driver
• Non-dimmable configuration
• Ingress protection: IP65
• Impact rating: IK07
• Color temperature: 3000 K (warm white)
• High lumen output: 9,000 lm

Product Specifications

• SKU: JNFL10-060S-3000-A3-ND
• Power consumption: 60 W (system 66 W)
• Input voltage: 100–305 V AC
• Total lumen output: 9,000 lm
• Beam angle: 40×40° (square), nominal 40°
• IP rating: IP65
• IK rating: IK07
• Color rendering index (CRI): >70
• LED type: Philips Lumileds
• Driver: Meanwell HLG-60H
• Power factor: >0.95
• Dimming: Non-dimmable
• Operating temperature: -20°C to 45°C
• Working humidity: 10%–90% RH
• Expected lifespan: 50,000 hours
• Warranty: 5 years
• Dimensions (H×L×W): 366 × 327 × 91 mm
• Weight: 4 kg
• Number of LED modules: 1 module
• Mounting: adjustable bracket

Applications
Suitable for industrial yards, building facades, signage, warehouses, sports perimeters and general outdoor lighting where a compact, high-output warm white flood light with square beam is required.

Packaging & Shipping

• Net weight per unit: 4 kg
• Export carton dimensions: 450 × 400 × 380 mm
• Products per carton: 2
• Export carton gross weight: 6 kg
