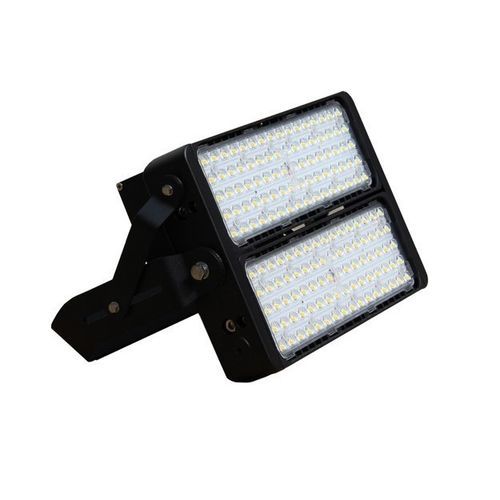

LED floodlight JNFLM14-200S-6500-A3-DIM

HIDHPSIP65

Product Overview
200W modular LED flood light with 1×3 module configuration, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable and IP65 rated for outdoor installations. Square beam optics 60×60° produce a total luminous flux of 26,000 lm, suitable as a replacement for 400W metal halide/HID/HPS luminaires.

Features

• Modular design (1×3 modules)
• Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• Dimmable control
• IP65 protection for outdoor use
• Square beam angle 60×60°
• Total luminous output: 26,000 lm
• Die-cast aluminum housing, black
• IK08 impact resistance
• Power factor >0.95
• Operating temperature: -20°C to 45°C

Product Specifications
Product SKU: JNFLM14-200S-6500-A3-DIM
Power Consumption: 200 W
System Power: 206 W
Input Voltage: 100-277 V
Input Frequency: 50/60 Hz
Beam Angle: 60×60° (square)
IP Rating: IP65
CRI: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 26,000 lm
Color Temperature: 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Material: Die-cast Aluminum
Housing Colour: Black
Power Factor: >0.95
Number of LED Modules: 1 module
Fixture Dimensions (L×W×H): 326×128×113 mm
Fixture Weight: 8.2 kg
Working Humidity Range: 10% - 90% RH
Lifespan: 50,000 hours
Warranty: 5 years

Packaging & Shipping
Product Dimensions (mm): 326×128×113 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 400×360×230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• Power Consumption: 200 W
• System Power: 206 W
• Input Voltage: 100-277 V
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Total Lumens Output: 26,000 lm
• Color Temperature: 6000 K
• CRI: >80
• Beam Angle: 60×60° (square)
• IK Rating: IK08
• IP Rating: IP65
• Power Factor: >0.95
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting Type: Adjustable Bracket Mount
• Fixture Dimensions (L×W×H): 326×128×113 mm
• Product Weight: 8.2 kg
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
