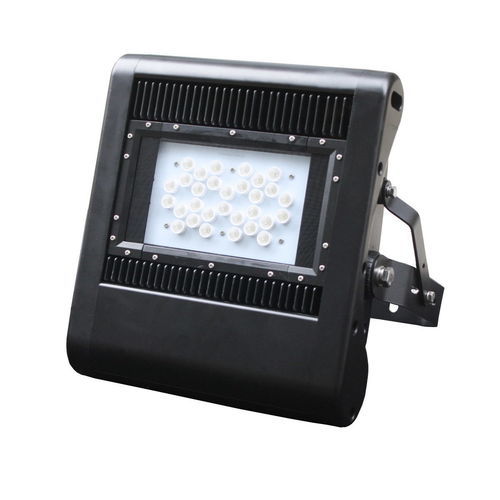

LED floodlight JNFL10-060S-3500-A1-ND

HIDHPSIP65

Short description
60 W LED flood light with Philips Lumileds and Meanwell HLG-60H driver. Single-lens PCB design delivering 9,000 lm at warm white 3500 K. IP65 rated for outdoor use; non-dimmable. Designed to replace 150 W metal halide/HID/HPS fittings in industrial and exterior lighting installations.

SKU
JNFL10-060S-3500-A1-ND

Features

• 15×15° single-lens / PCB optical design
• Warm white 3500 K colour temperature
• Non-dimmable (fixed output)
• IP65 rated for outdoor and wet environments
• Philips Lumileds LEDs
• Meanwell HLG-60H LED driver (external)
• Adjustable bracket for aiming and mounting

Product Specifications
Product SKU: JNFL10-060S-3500-A1-ND
Power Consumption: 60 W
System Power: 66 W
Input Voltage: 100–305 V AC
Total Lumens Output: 9,000 lm
Beam Angle (°): 15° (15×15° square)
Color Temperature (K): 3500 K
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
LED Driver Brand: Meanwell HLG-60H
Dimming Capability: Non-dimmable
IP Rating: IP65
IK Impact Rating: IK07
Power Factor: >0.95
Number of LED Modules: 1 module
Fixture Height (mm): 366 mm
Fixture Length (mm): 327 mm
Fixture Width (mm): 91 mm
Product Weight: 4 kg
Environmental Temperature Range: -20°C to 45°C
Working Humidity Range: 10%–90% RH
Lifespan (Hours): 50,000 hours
Warranty Period (Years): 5

Packaging & Shipping
Net Weight (kg): 4 kg
Products per Carton: 2
Export Carton Dimensions (mm): 450 × 400 × 380 mm
Export Carton Gross Weight (kg): 6 kg
Fixture Height (mm): 366 mm
Fixture Width (mm): 91 mm
Fixture Length (mm): 327 mm

Product Gallery
Main product image and technical drawing images available (photographs and drawings showing fixture and dimensions).

Technical specifications

• Model / Series: JNFL10
• Power: 60 W (System power 66 W)
• Input Voltage: 100–305 V
• Lumen output: 9,000 lm
• Colour temperature: 3,500 K (warm white)
• CRI: >70
• LED: Philips Lumileds
• LED driver: Meanwell HLG-60H
• Beam angle: 15×15° (square)
• IK Rating: IK07
• IP Rating: IP65
• Power Factor: >0.95
• Dimming: Non-dimmable
• Mounting: Adjustable bracket
• Dimensions (H×L×W): 366 mm × 327 mm × 91 mm
• Net weight: 4 kg
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
