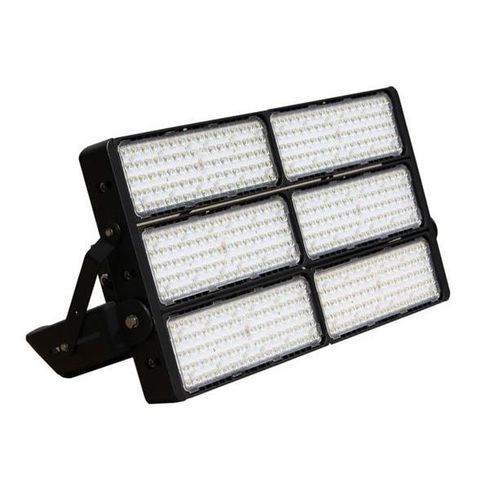

LED floodlight JNFLM18/6-400S-6500-A5-ND

HIDHPSIP65

Short description
400W modular LED flood light, configuration 1×6 modules, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable. IP65. Suitable replacement for 1000W metal halide/HID/HPS installations.

Features

• Configuration: 1×6 LED modules
• LEDs: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• IP Rating: IP65
• Beam angle: 30×100°
• Non-dimmable

Specification Details
Product SKU: JNFLM18/6-400S-6500-A5-ND
Power Consumption: 400 W
System Power: 406 W
Input Voltage: 100-277V
Input Frequency: 50/60 Hz
Beam Angle: 30x100°
Total Lumens Output: 52,000 lm
Color Temperature: 6000 K (cool white)
Color Rendering Index (CRI): >80
LED Type: Philips Lumileds (Luxeon TX)
LED Driver Brand: Meanwell driver(s)
Power Factor: >0.95
IK Impact Rating: IK08
IP Rating: IP65
Housing Material: Die-cast aluminum
Housing Colour: Black
Mounting Type: Adjustable bracket mount
Fixture Dimensions (L×W×H): 326×128×113 mm
Fixture Weight (Net): 17.2 kg
Operating Temperature Range: -20°C to 45°C
Working Humidity Range: 10%–90% RH
Lifespan: 50,000 hours
Warranty Period: 5 years

Packaging & Shipping
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• SKU: JNFLM18/6-400S-6500-A5-ND
• Power Consumption: 400 W (System 406 W)
• Input: 100-277V, 50/60 Hz
• LED: Philips Lumileds (Luxeon TX)
• Driver: Meanwell
• Luminous Flux: 52,000 lm
• Colour Temperature: 6000 K (cool white)
• CRI: >80
• Beam Angle: 30×100°
• IP Rating: IP65
• IK Rating: IK08
• Housing: Die-cast aluminum, black
• Mounting: Adjustable bracket
• Dimensions: 326×128×113 mm
• Net Weight: 17.2 kg
• Operating Temp: -20°C to 45°C
• Humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
