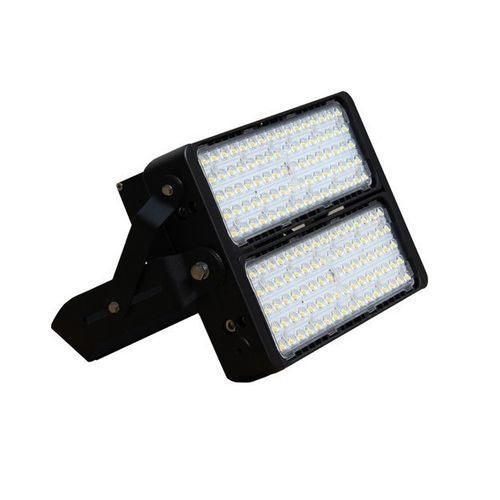

LED floodlight JNFLM14-200S-5000-A7-DIM

HIDHPSIP65

Product Summary
200W modular LED flood light with 1×3 module configuration, equipped with Philips Lumileds (Luxeon TX) and Meanwell driver(s). Dimmable and IP65-rated, delivers 26,000 lm at 6000K (cool white) and replaces 400W metal halide/HID/HPS fixtures. Die-cast aluminum housing with adjustable bracket mount, IK08 impact rating, 50,000-hour lifespan and 5-year warranty.

Features

• Configuration: 1×3 modules
• LED: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Dimming Capability: Dimmable
• IP Rating: IP65
• Beam Angle: 50×140°
• Colour Temperature: 6000K (cool white)
• Total Lumens Output: 26,000 lm
• Replaces: 400W metal halide / HID / HPS
• Housing Colour: Black
• Mounting: Adjustable bracket

Product Specifications

• Product SKU: JNFLM14-200S-5000-A7-DIM
• Power Consumption (W): 200
• System Power (W): 206
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• Power Factor: >0.95
• Beam Angle: 50×140°
• IP Rating: IP65
• IK Rating: IK08
• Color Rendering Index (CRI): >80
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens Output: 26,000 lm
• Color Temperature (K): 6000
• Number of LED Modules: 1 module (1×3 configuration)
• Housing Material: Die-cast Aluminum
• Fixture Dimensions (mm): 326×128×113
• Fixture Weight: 8.2 kg
• Environmental Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Warranty Period: 5 years

Packaging & Shipping

• Product Dimensions (mm): 326×128×113
• Net Weight (kg): 8.2
• Export Carton Dimensions (mm): 400×360×230
• Products per Carton: 1
• Export Carton Gross Weight (kg): 8

Technical specifications

• Power Consumption: 200 W
• Input Voltage: 100-277V
• Beam Angle: 50×140°
• IP Rating: IP65
• CRI: >80
• LED Type: Philips Lumileds (Luxeon TX)
• Luminous Flux: 26,000 lm
• CCT: 6000K
• IK Rating: IK08
• Dimmable: Yes
• Power Factor: >0.95
• Housing Material: Die-cast Aluminum
• Warranty: 5 years
• Weight: 8.2 kg
• Lifespan: 50,000 hours
