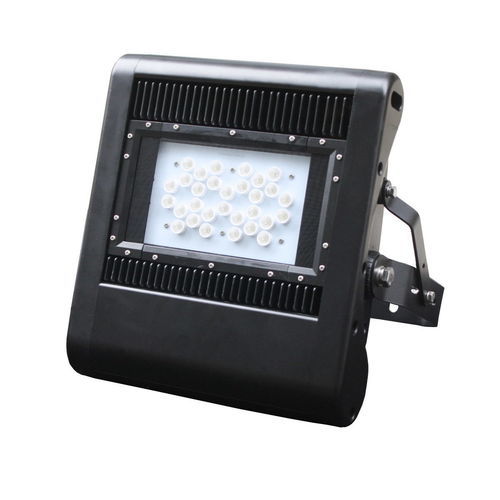

LED floodlight JNFL10-060S-3500-A3-DIM

HIDHPSIP65

Product Overview
60 Watt LED flood light fitted with Philips Lumileds LEDs and a Meanwell HLG-60H driver. Dimmable, IP65 and IK07 rated. Designed to replace 150 Watt metal halide/HID/HPS luminaires while delivering 9,000 lm at 3500 K (warm white). Warranty: 5 years. Lifespan: 50,000 hours.

Features

• 60 W power consumption (system power 66 W)
• Philips Lumileds LEDs
• Meanwell HLG-60H LED driver
• Dimmable
• Beam angle: 40×40° (square)
• High lumen output: 9,000 lm
• Colour temperature: 3500 K (warm white)
• IP65 ingress protection
• IK07 impact rating
• Power factor >0.95
• Warranty: 5 years
• Lifespan: 50,000 hours

Additional Product Information

• Input voltage: 100–305 V
• Mounting: adjustable bracket
• Housing colour: Black
• Operating temperature: -20°C to 45°C
• Working humidity: 10%–90% RH
• Number of LED modules: 1
• Fixture dimensions (H×L×W): 366 mm × 327 mm × 91 mm
• Product weight: 4 kg

Technical specifications

• Product SKU: JNFL10-060S-3500-A3-DIM
• Power Consumption: 60 W
• System Power: 66 W
• Input Voltage: 100-305 V
• Beam Angle (°): 40°
• Beam Angle (square): 40x40°
• IP Rating: IP65
• IK Impact Rating: IK07
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• Total Lumens Output: 9000 lm
• Colour Temperature (CCT): 3500 K
• Dimming Capability: Dimmable
• Housing Colour: Black
• Power Factor: >0.95
• LED Driver Brand: Meanwell HLG-60H
• Warranty Period (Years): 5
• Environmental / Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10%-90% RH
• Lifespan: 50,000 hours
• Mounting Type: Adjustable Bracket
• Fixture Height: 366 mm
• Fixture Length: 327 mm
• Fixture Width: 91 mm
• Product Weight: 4 kg
