LED floodlight JNFLM18/6-400S-6500-A5-DIM

HIDHPSIP65

Product Description

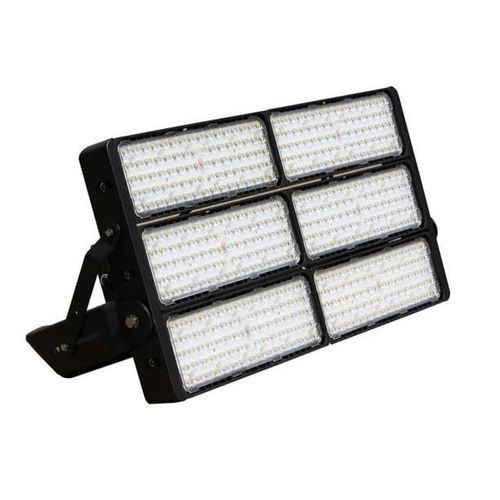

400W modular LED flood light configured as 1×6 modules. Fitted with original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65-rated housing for outdoor and industrial installations. Designed to replace 1000W metal halide / HID / HPS fixtures while reducing power consumption and maintenance requirements.

Features

• Modular design (1×6 modules)
• Original Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• Dimmable
• IP65 ingress protection
• High lumen output to replace 1000W metal halide / HID / HPS

Product Specifications (table)
Product SKU: JNFLM18/6-400S-6500-A5-DIM
Power Consumption: 400 W
System Power: 406 W
Input Voltage: 100-277 V
Input Frequency: 50/60 Hz
Beam Angle (°): 30x100°
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index (CRI): >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52,000 lm
Color Temperature (K): 6000 K (cool white)
Dimming Capability: Dimmable
Power Factor: >0.95
Housing Material: Die-cast Aluminum
Housing Colour: Black
Mounting Type: Adjustable bracket mount
Number of LED Modules: 1×6 modules
Fixture Length × Width × Height (mm): 326 × 128 × 113 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%–90% RH
Lifespan (Hours): 50,000 hours
Warranty Period (Years): 5

Packaging & Shipping (table)
Product Dimensions (mm): 326 × 128 × 113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400 × 360 × 230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• Power Consumption: 400 W
• System Power: 406 W
• Input Voltage: 100-277 V
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell
• Total Lumens: 52,000 lm
• Colour Temperature: 6000 K (cool white)
• CRI: >80
• Beam Angle: 30×100°
• IK Rating: IK08
• IP Rating: IP65
• Power Factor: >0.95
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting: Adjustable bracket mount
• Dimensions (L×W×H): 326 × 128 × 113 mm
• Product Weight: 17.2 kg
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
• Configuration: 1×6 LED modules
