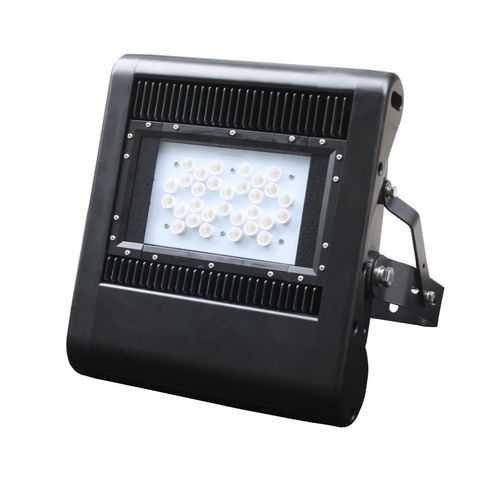

LED floodlight JNFL10-060S-3000-A1-ND

metal-halideHIDHPS

Product Summary
60 Watt LED flood light equipped with original Philips Lumileds LEDs and a Meanwell HLG-60H driver. Non-dimmable. IP65-rated for outdoor use. Designed as a direct replacement for 150 W metal halide/HID/HPS fixtures.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-60H LED driver
• Non-dimmable
• IP65 ingress protection
• IK07 impact rating
• High power factor >0.95
• Designed to replace 150W metal halide/HID/HPS
• Adjustable bracket mounting

Product Specifications (detailed)
Product SKU: JNFL10-060S-3000-A1-ND
Power Consumption: 60 W
Input Voltage: 100–305 V AC
Beam Angle: 15° (15×15° square)
IP Rating: IP65
IK Impact Rating: IK07
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumen Output: 9000 lm
Color Temperature: 3000 K (warm white)
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period: 5 years
System Power: 66 W
Number of LED Modules: 1 module
Operating Temperature Range: -20°C to 45°C
Operating Humidity Range: 10%–90% RH
Lifespan: 50,000 hours
Mounting Type: Adjustable bracket
Dimensions (H×L×W): 366 mm × 327 mm × 91 mm
Product Weight: 4 kg
LED Driver Brand: Meanwell HLG-60H

Packaging & Shipping
Net Weight (kg): 4 kg
Export Carton Dimensions (mm): 450 × 400 × 380 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 6 kg
Fixture Height (mm): 366 mm
Fixture Width (mm): 91 mm
Fixture Length (mm): 327 mm

Technical specifications

• SKU: JNFL10-060S-3000-A1-ND
• Rated Power: 60 W (System power 66 W)
• Input Voltage: 100–305 V AC
• LED: Philips Lumileds
• Luminous Flux: 9000 lm
• Colour Temperature: 3000 K (warm white)
• CRI: >70
• Beam Angle: 15×15° (single lens)
• IP Rating: IP65
• IK Rating: IK07
• Driver: Meanwell HLG-60H
• Dimming: Non-dimmable
• Power Factor: >0.95
• Lifespan: 50,000 hours
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Mounting: Adjustable bracket
• Dimensions (H×L×W): 366 mm × 327 mm × 91 mm
• Weight: 4 kg
• Warranty: 5 years
