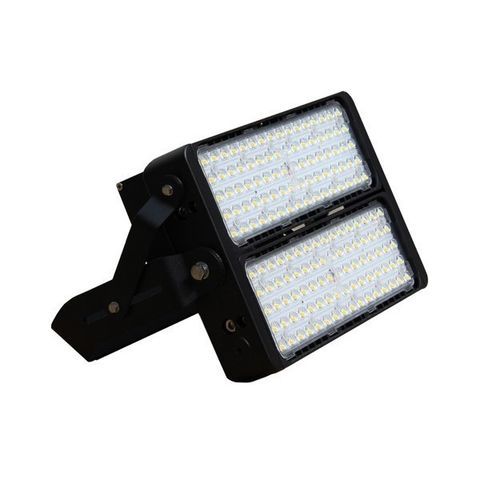

LED floodlight JNFLM14-200S-6500-A3-ND

HIDHPSIP65

Short description
200W modular LED flood light in a 1×3 module configuration, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable, IP65 rated, designed to replace 400W metal halide/HID/HPS fixtures for outdoor industrial floodlighting.

Key features

• Power: 200 W (system power 206 W)
• LEDs: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Beam angle: 60×60° (square)
• Light output: 26,000 lm; Color temperature: 6000 K (cool white)
• CRI: >80; Power factor: >0.95
• Protection: IP65, IK08
• Housing: die-cast aluminum, black finish
• Mounting: adjustable bracket mount
• Lifespan: 50,000 hours; Warranty: 5 years

Technical specifications

• SKU: JNFLM14-200S-6500-A3-ND
• Power consumption: 200 W
• System power: 206 W
• Input voltage: 100–277 V
• Input frequency: 50/60 Hz
• Beam angle: 60×60°
• Total lumens output: 26,000 lm
• Color temperature: 6000 K (cool white)
• CRI: >80
• LED type: Philips Lumileds (Luxeon TX)
• LED driver: Meanwell driver(s)
• Number of LED modules: 3 (configuration 1×3)
• IP rating: IP65
• IK impact rating: IK08
• Power factor: >0.95
• Housing material: die-cast aluminum
• Housing colour: Black
• Mounting type: Adjustable bracket mount
• Fixture dimensions (L×W×H): 326 × 128 × 113 mm
• Product weight: 8.2 kg
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty period: 5 years

Dimensions & packaging

• Product dimensions: 326 × 128 × 113 mm
• Net weight: 8.2 kg
• Export carton dimensions: 400 × 360 × 230 mm
• Products per carton: 1
• Export carton gross weight: 8 kg

Applications

• Outdoor industrial and commercial floodlighting
• Warehouse yard, loading areas and perimeter security
• Building façade and architectural accent lighting
• Parking lots, storage yards, sports courts and shipyard lighting

Warranty & compliance

• Warranty: 5 years
• IP65 dust/water protection and IK08 impact resistance
• Designed for ambient temperatures from -20°C to 45°C
