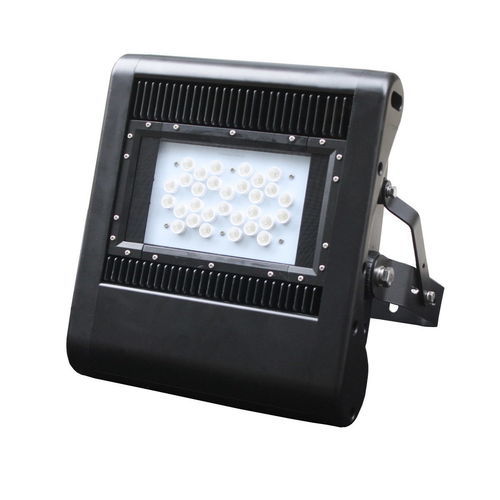

LED floodlight JNFL10-060S-3000-A2-DIM

HIDHPSIP65

Short description
60 W LED flood light with Philips Lumileds LEDs and Meanwell HLG-60H driver. Dimmable and IP65-rated for outdoor industrial installations. Replaces 150 W metal halide/HID/HPS fixtures while delivering 9000 lm at 3000 K.

Features

• Warm white 3000K colour temperature
• Dimmable
• Single lens / PCB design
• Original Philips Lumileds LEDs
• Meanwell HLG-60H LED driver
• IP65 rated for outdoor use
• High lumen output (9000 lm)
• IK07 impact rating
• Adjustable mounting bracket

Product specifications
Product SKU: JNFL10-060S-3000-A2-DIM
Power Consumption: 60 W
Input Voltage: 100-305 V
Beam Angle (°): 30°
Beam Angle Square: 30x30°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 9000 lm
Colour Temperature (K): 3000 K
IK Impact Rating: IK07
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
System Power: 66 W
Number of LED Modules: 1 module
Environmental Temperature Range: -20°C ~ 45°C
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Fixture Height: 366 mm
Fixture Length: 327 mm
Fixture Width: 91 mm
Product Weight: 4 kg
LED Driver Brand: Meanwell HLG-60H
Lifespan: 50,000 hours

Packaging & Shipping
Net Weight: 4 kg
Export Carton Dimensions (mm): 450x400x380
Products per Carton: 2
Export Carton Gross Weight: 6 kg
Fixture Height (mm): 366
Fixture Width (mm): 91
Fixture Length (mm): 327

Technical specifications

• SKU: JNFL10-060S-3000-A2-DIM
• Power Consumption: 60 W
• System Power: 66 W
• Input Voltage: 100-305 V
• Lumens: 9000 lm
• CCT: 3000 K (warm white)
• CRI: >70
• Beam Angle: 30° (30x30° square)
• IP Rating: IP65
• IK Rating: IK07
• Dimming: Dimmable
• LEDs: Philips Lumileds
• Driver: Meanwell HLG-60H
• PF: >0.95
• Mounting: Adjustable Bracket
• Dimensions (H×L×W): 366 mm × 327 mm × 91 mm
• Weight: 4 kg
• Operating Temp: -20°C to 45°C
• Working Humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
