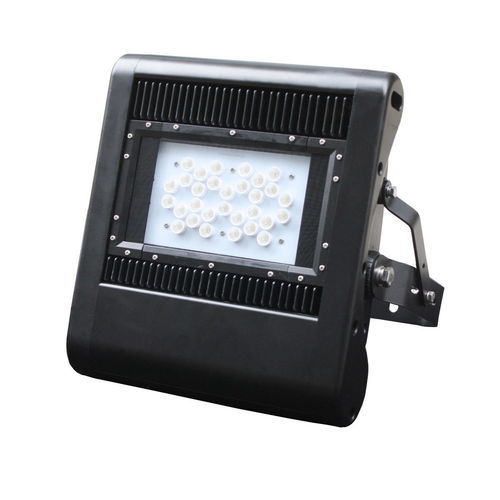

LED floodlight JNFL10-060S-3000-A2-ND

HIDHPSIP65

Product Overview
60 W LED flood light for outdoor and industrial applications. Equipped with Philips Lumileds LEDs and Meanwell HLG-60H driver. Non-dimmable, IP65-rated, square 30x30° beam and warm white 3000 K colour temperature. Replaces 150 W metal halide/HID/HPS luminaires.

Features

• Philips Lumileds LED modules (1 module)
• Meanwell HLG-60H LED driver
• Non-dimmable
• IP65 protection for outdoor use
• 30x30° square beam
• Warm white 3000 K
• Total luminous output: 9,000 lm
• Power factor >0.95
• CRI >70
• IK07 impact resistance
• Adjustable bracket mounting
• Rated lifespan: 50,000 hours
• 5-year warranty

Technical specifications

• SKU: JNFL10-060S-3000-A2-ND
• Power consumption: 60 W (system power 66 W)
• Input voltage: 100–305 V
• Beam angle: 30° (square beam 30x30°)
• IP rating: IP65
• IK rating: IK07
• LED type: Philips Lumileds
• Total luminous flux: 9,000 lm
• Colour temperature: 3,000 K
• CRI: >70
• Power factor: >0.95
• Driver: Meanwell HLG-60H
• Number of LED modules: 1
• Dimming capability: Non-dimmable
• Housing colour: Black
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Dimensions (H x L x W): 366 x 327 x 91 mm
• Weight: 4 kg

Packaging & Shipping

• Net weight (per unit): 4 kg
• Products per carton: 2
• Export carton dimensions: 450 x 400 x 380 mm
• Export carton gross weight: 6 kg
• Fixture dimensions (H x L x W): 366 x 327 x 91 mm

Applications

• Outdoor area lighting
• Industrial sites and warehousing
• Building façades and signage
• Sports and recreational facilities (accent/area lighting)
