LED floodlight JNFLM18/6-400S-6500-A8-ND

HIDHPSIP65

Product short description

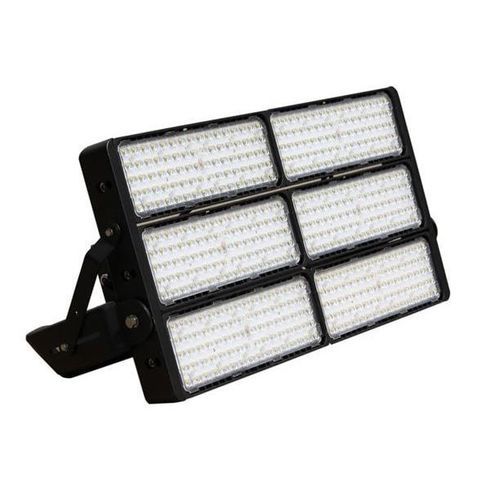

400W modular LED flood light with 1×6 module configuration, Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Cool white 6000K, 52,000 lm output. IP65 rated housing for outdoor use. Replaces 1000W metal halide/HID/HPS fixtures. Note: conflicting dimming information is reported in the product data (see note below).

Key features

• Configuration: 1×6 modules
• LED type: Philips Lumileds (Luxeon TX)
• LED driver: Meanwell driver(s)
• IP rating: IP65 suitable for outdoor installations
• Beam angle (square): 140×140°
• Total lumens output: 52,000 lm
• Colour temperature: 6000 K (cool white)
• CRI: >80
• IK impact rating: IK08
• Power consumption: 400 W (system power 406 W)
• Power factor: >0.95
• Input voltage: 100-277 V, 50/60 Hz
• Housing: Die-cast aluminum, colour: Black
• Mounting: Adjustable bracket mount
• Fixture dimensions (L×W×H): 326 × 128 × 113 mm
• Product weight: 17.2 kg
• Lifespan: 50,000 hours
• Warranty: 5 years
• Replaces: 1000 Watt metal halide/HID/HPS

Specification details (summary)
Product SKU: JNFLM18/6-400S-6500-A8-ND
Power Consumption: 400 W
System Power: 406 W
Input Voltage: 100-277V
Input Frequency: 50/60 Hz
Beam Angle: 140×140°
IP Rating: IP65
CRI: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52,000 lm
Colour Temperature: 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable (see note below)
Housing Colour: Black
Power Factor: >0.95
Housing Material: Die-cast Aluminum
Number of LED Modules: 1 module
Environmental Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Mounting Type: Adjustable Bracket Mount
Fixture Dimensions: 326 × 128 × 113 mm
Product Weight: 17.2 kg
Lifespan: 50,000 hours
Warranty Period: 5 years
LED Driver Brand: Meanwell

Technical characteristics / specifications

• SKU: JNFLM18/6-400S-6500-A8-ND
• Power: 400 W (system 406 W)
• LEDs: Philips Lumileds (Luxeon TX)
• Light output: 52,000 lm
• CCT: 6000 K (cool white)
• Beam: 140×140° (square)
• IP rating: IP65
• IK rating: IK08
• Drivers: Meanwell
• Input: 100-277 V, 50/60 Hz
• Power factor: >0.95
• Housing: Die-cast aluminum, black
• Mounting: Adjustable bracket
• Dimensions (mm): 326 × 128 × 113
• Weight: 17.2 kg
• Lifespan: 50,000 hours
• Warranty: 5 years
• Replacement for: 1000 W metal halide/HID/HPS
• Note: page contains conflicting dimming information — the short description states 'Non-dimmable' while the specification table lists the Dimming Capability as 'Dimmable'.
