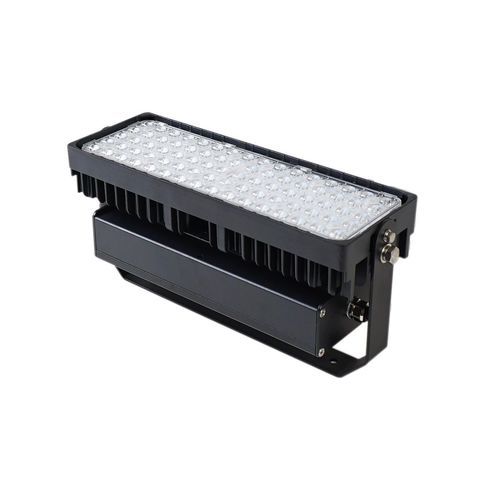

LED floodlight JNFLM12-100S-6500-A4-DIM

metal-halideHIDHPS

Product description
Modular 100 W LED flood light in 1x2 module configuration, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65 rated for outdoor use. Typical replacement for 250 W metal halide / HID / HPS fixtures.

Features

• Modular 1x2 module configuration
• Original Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• Dimmable
• IP65 rated for outdoor environments
• 90x90° beam angle (square)
• Replaces 250W metal halide / HID / HPS

Technical specifications

• Product SKU: JNFLM12-100S-6500-A4-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277 V
• Input Frequency: 50/60 Hz
• Beam Angle (°): 90x90°
• Beam Angle Square: 90x90°
• IP Rating: IP65
• IK Impact Rating: IK08
• Color Rendering Index (CRI): >80
• Colour Temperature (K): 6000
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens Output: 13000 lm
• Power Factor: >0.95
• Housing Colour: Black
• Housing Material: Die-cast Aluminum
• Number of LED Modules: 1 modules
• Mounting Type: Adjustable Bracket Mount
• Fixture Height: 113 mm
• Fixture Length: 326 mm
• Fixture Width: 128 mm
• Product Weight / Net Weight: 6 kg
• Export Carton Dimensions: 400x360x230 mm
• Products per Carton: 1
• Export Carton Gross Weight: 8 kg
• Environmental / Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Warranty Period (Years): 5
• LED Driver Brand: Meanwell driver(s)
