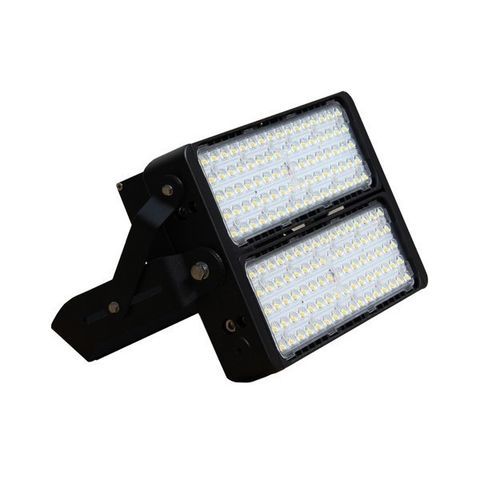

LED floodlight JNFLM14-200S-6500-A6-ND

HIDHPSIP65

Short description
200W modular LED flood light, configuration 1×3 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Non-dimmable. IP65. Replaces 400 Watt metal halide/HID/HPS.

Features

• Configuration: 1×3 modules
• LEDs: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• IP Rating: IP65 (suitable for outdoor use)
• Color Temperature: 6000 K (cool white)
• Total lumen output: 26,000 lm
• Beam angle: 40×100° (rectangular flood beam)
• Replaces traditional 400W metal halide/HID/HPS fixtures
• Housing: die-cast aluminum, black
• Mounting: adjustable bracket mount
• IK Impact Rating: IK08
• Warranty: 5 years

Product Specifications
Product SKU: JNFLM14-200S-6500-A6-ND
Power Consumption: 200 W
System Power: 206 W
Input Voltage: 100-277V
Input Frequency: 50/60 Hz
Beam Angle (°): 40x100°
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index (CRI): >80
Color Temperature (K): 6000
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 26000 lm
Number of LED Modules: 1×3 modules configuration
Dimming Capability: Non-dimmable (note: some technical rows list dimmable)
Housing Colour: Black
Housing Material: Die-cast Aluminum
Power Factor: >0.95
LED Driver Brand: Meanwell driver(s)
Environmental / Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 8.2 kg

Packaging & Shipping
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 400x360x230
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Specification Details (summary line)
200W modular LED flood light, configuration 1×3 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Non-dimmable. IP65. Replaces 400 Watt metal halide/HID/HPS.

Technical specifications

• SKU: JNFLM14-200S-6500-A6-ND
• Power consumption: 200 W (system power listed as 206 W)
• Input voltage: 100-277V
• Frequency: 50/60 Hz
• Beam angle: 40×100°
• IP rating: IP65
• CRI: >80
• LED: Philips Lumileds (Luxeon TX)
• Lumens: 26,000 lm
• CCT: 6000 K
• IK rating: IK08
• Dimming: Non-dimmable (spec sheets may indicate dimmable)
• Housing: Die-cast Aluminum, Black
• Mounting: Adjustable bracket mount
• Dimensions (L×W×H): 326 × 128 × 113 mm
• Weight: 8.2 kg
• Warranty: 5 years
• Lifespan: 50,000 hours
