LED floodlight

HIDHPSIP65

Product description

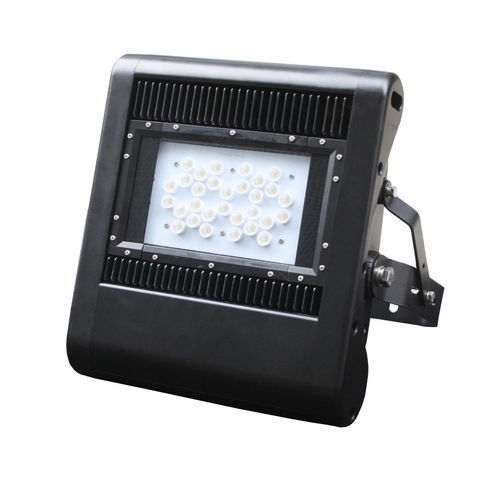

60 W LED flood light JNFL10-060S-3500-A4-DIM equipped with Philips Lumileds LEDs and a Meanwell HLG-60H driver. Dimmable, IP65 rated for dust and water protection. Square 60x60° beam for focused illumination. Suitable for industrial and commercial outdoor/indoor installations with an adjustable mounting bracket. Designed to replace 150 W metal halide/HID/HPS fixtures and operate between -20°C and 45°C. Warranty: 5 years.

Features

• Warm white colour temperature: 3500 K
• Dimmable (driver included)
• Ingress protection: IP65
• LED source: Philips Lumileds
• LED driver: Meanwell HLG-60H
• Replaces 150 W metal halide / HID / HPS
• Beam angle: 60x60° square beam
• Total luminous flux: 9000 lm
• Power factor: >0.95
• Impact rating: IK07
• Operating temperature range: -20°C to 45°C

Product specifications (table)
Product SKU: JNFL10-060S-3500-A4-DIM
Power Consumption: 60 W
System Power: 66 W
Input Voltage: 100-305 V
Beam Angle (°): 60° (60x60° square)
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 9000 lm
Color Temperature (K): 3500 K
IK Impact Rating: IK07
Dimming Capability: Dimmable (driver included)
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
LED Driver Brand: Meanwell HLG-60H
Number of LED Modules: 1 module
Fixture Height (mm): 366 mm
Fixture Length (mm): 327 mm
Fixture Width (mm): 91 mm
Product Weight: 4 kg
Environmental Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Net Weight (kg): 4 kg
Export Carton Dimensions (mm): 450 x 400 x 380
Products per Carton: 2
Export Carton Gross Weight (kg): 6 kg
Fixture Height (mm): 366
Fixture Width (mm): 91
Fixture Length (mm): 327

Technical specifications

• Power Consumption: 60 W
• System Power: 66 W
• Input Voltage: 100-305 V
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-60H
• Lumens: 9000 lm
• Colour Temperature: 3500 K
• CRI: >70
• Beam Angle: 60x60° (square)
• IP Rating: IP65
• IK Rating: IK07
• Dimmable: Yes
• Power Factor: >0.95
• Warranty: 5 years
• Dimensions (HxLxW): 366 mm x 327 mm x 91 mm
• Weight: 4 kg
• Operating Temperature: -20°C to 45°C
• Humidity Range: 10%–90% RH
• Lifespan: 50,000 hours
