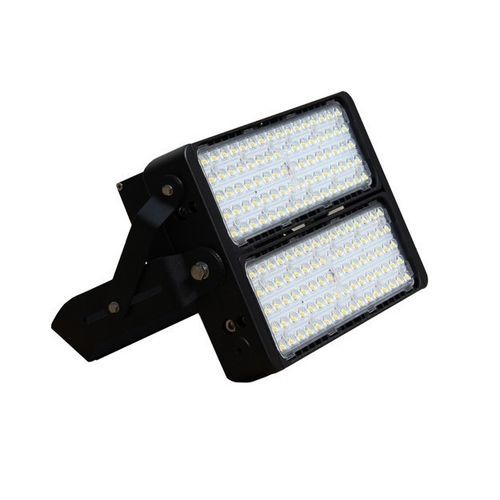

LED floodlight JNFLM14-200S-6500-A2-DIM

HIDHPSIP65

Short description
200W modular LED flood light in a 1×3 module configuration featuring original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Cool white 6000K, dimmable, IP65 rated; suitable to replace 400W metal halide/HID/HPS fixtures for industrial and outdoor applications.

Product Specifications
Product SKU: JNFLM14-200S-6500-A2-DIM
Power Consumption: 200 W
System Power: 206 W
Input Voltage: 100-277V
Color Temperature: 6000K (cool white)
Color Rendering Index (CRI): >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumen Output: 26,000 lm
Beam Angle: 30x30° (square)
IP Rating: IP65
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Material: Die-cast aluminum
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Number of LED Modules: 1 modules
Lifespan: 50,000 hours
Working Temperature Range: -20°C to 45°C
Working Humidity Range: 10% - 90% RH
Mounting Type: Adjustable bracket mount
Fixture Dimensions (L×W×H): 326×128×113 mm
Product Weight: 8.2 kg
LED Driver Brand: Meanwell driver(s)

Packaging & Shipping
Product Dimensions (mm): 326×128×113 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 400×360×230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Features / Highlights

• Original Philips Lumileds (Luxeon TX) LEDs
• Meanwell LED driver(s)
• Dimmable operation for lighting control
• IP65 ingress protection for outdoor/industrial use
• Direct replacement for 400W metal halide / HID / HPS systems
• High lumen output: 26,000 lm
• 30x30° square beam angle for directed illumination
• Die-cast aluminum housing in black
• Power factor >0.95
• IK08 impact resistance
• Operating temperature range: -20°C to 45°C
• Lifespan: 50,000 hours

Technical specifications

• Power Consumption: 200 W
• System Power: 206 W
• Input Voltage: 100-277V
• Color Temperature: 6000K
• CRI: >80
• Lumen Output: 26,000 lm
• Beam Angle: 30x30°
• Dimensions (L×W×H): 326×128×113 mm
• Weight: 8.2 kg
• Housing Material: Die-cast Aluminum
• LED Type: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Mounting: Adjustable bracket mount
• Warranty: 5 years
