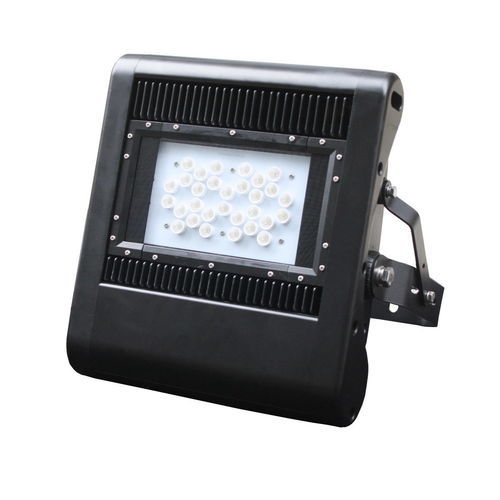

LED floodlight JNFL10-060S-3500-A2-ND

HIDHPSIP65

Short description
60 Watt LED flood light fitted with original Philips Lumileds and Meanwell HLG-60H driver(s). Non-dimmable. IP65 ingress protection. Square 30×30° single-lens beam, 3500 K warm white. Suitable as a replacement for 150 W metal halide/HID/HPS in outdoor area and façade lighting.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-60H LED driver
• Non-dimmable
• IP65 ingress protection
• Beam: 30×30° single lens (square beam)
• Replaces 150 W metal halide/HID/HPS

Product specifications (table)
Product SKU : JNFL10-060S-3500-A2-ND
Power Consumption : 60 W
Input Voltage : 100-305 V
Beam Angle (°) : 30°
IP Rating : IP65
Color Rendering Index : >70
LED Type : Philips Lumileds
Total Lumens Output : 9000 lm
Color Temperature (K) : 3500 K
IK Impact Rating : IK07
Dimming Capability : Non-dimmable
Housing Colour : Black
Power Factor : >0.95
Warranty Period (Years) : 5
System Power : 66 W
Number of LED Modules : 1 modules
Beam Angle Square : 30x30°
Environmental Temperature Range : -20°C ~ 45°C
Mounting Type : Adjustable Bracket
Fixture Height (mm) : 366 mm
Fixture Length (mm) : 327 mm
Fixture Width (mm) : 91 mm
Product Weight : 4 kg
LED Driver Brand : Meanwell HLG-60H
Working Temperature Range : -20°C ~ 45°C
Working Humidity Range : 10%-90% RH
Lifespan (Hours) : 50,000 hours

Packaging & Shipping (table)
Net Weight (kg) : 4 kg
Export Carton Dimensions (mm) : 450x400x380
Products per Carton : 2
Export Carton Gross Weight (kg) : 6 kg
Fixture Height (mm) : 366
Fixture Width (mm) : 91
Fixture Length (mm) : 327

Technical specifications

• Model / SKU: JNFL10-060S-3500-A2-ND
• Power: 60 W (System Power 66 W)
• Luminous flux: 9000 lm
• LED type: Philips Lumileds
• Driver: Meanwell HLG-60H
• Voltage: 100-305 V
• Beam angle: 30×30° (square)
• Colour temperature: 3500 K (warm white)
• CRI: >70
• IP rating: IP65
• IK rating: IK07
• Dimming: Non-dimmable
• Power factor: >0.95
• Mounting: Adjustable bracket
• Working temperature: -20°C to 45°C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Dimensions (HxLxW): 366 × 327 × 91 mm
• Weight: 4 kg
• Warranty: 5 years
