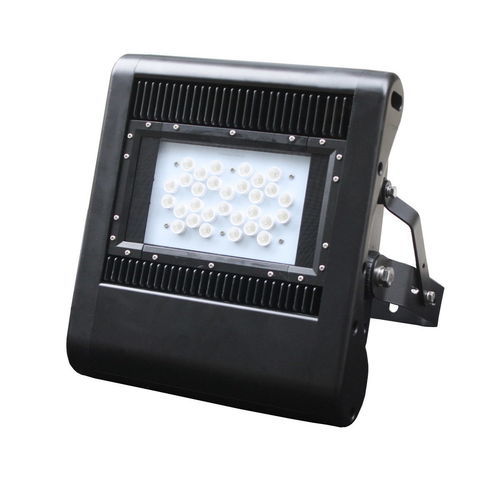

LED floodlight JNFL10-060S-3000-A6-ND

HIDIP65IK 07

Short description
60 W LED flood light fitted with Philips Lumileds LEDs and Meanwell HLG-60H driver. Non-dimmable, IP65 enclosure and IK07 impact resistance. Approx. 9,000 lm at 3000 K; suitable to replace 150 W metal halide/HID/HPS for outdoor industrial, façade and area lighting.

Features

• Philips Lumileds LEDs
• Meanwell HLG-60H LED driver
• Non-dimmable
• IP65 enclosure
• IK07 impact rating
• 85×135° single-lens rectangular beam
• Adjustable bracket mount
• Power factor >0.95
• 5-year warranty

Product Specifications
Product SKU: JNFL10-060S-3000-A6-ND
Power Consumption: 60 W (system power 66 W)
Total Luminous Flux: 9,000 lm
Color Temperature: 3000 K (warm white)
Beam Angle: 85×135° (single lens)
LED Type: Philips Lumileds
LED Driver: Meanwell HLG-60H
Input Voltage: 100–305 V
IP Rating: IP65
IK Rating: IK07
Color Rendering Index (CRI): >70
Power Factor: >0.95
Operating Temperature: -20°C to 45°C
Humidity Range: 10%–90% RH
Lifespan: 50,000 hours
Fixture Dimensions (H×L×W): 366 × 327 × 91 mm
Weight: 4 kg

Packaging & Shipping
Net Weight (per unit): 4 kg
Products per Carton: 2
Export Carton Dimensions (mm): 450 × 400 × 380
Export Carton Gross Weight: 6 kg

Technical specifications

• Power: 60 W (system 66 W)
• Input voltage: 100–305 V
• Luminous flux: 9,000 lm
• LED: Philips Lumileds
• Driver: Meanwell HLG-60H
• Beam angle: 85×135° (single lens, rectangular)
• Colour temperature: 3000 K (warm white)
• CRI: >70
• IP rating: IP65
• IK rating: IK07
• Power factor: >0.95
• Operating temperature: -20°C to 45°C
• Humidity: 10%–90% RH
• Lifetime: 50,000 hours
• Warranty: 5 years
• Fixture dimensions (H×L×W): 366 × 327 × 91 mm
• Weight: 4 kg
