LED floodlight JNFL10-060S-3000-A4-ND

HIDHPSIP65

Short description

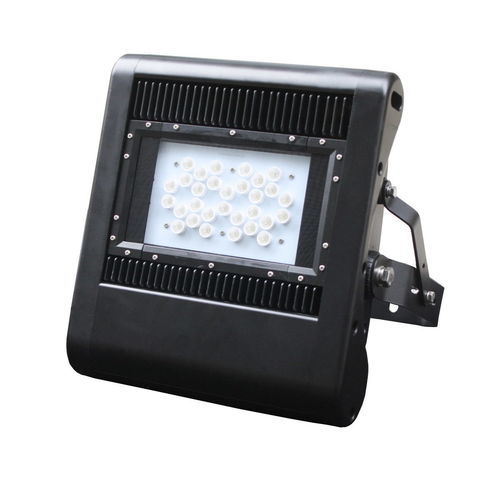

60 Watt LED flood light, with original Philips Lumileds and Meanwell driver(s). Non-dimmable. IP65. Replaces 150 Watt metal halide/HID/HPS.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-60H LED driver
• Non-dimmable
• IP65 rated for outdoor use
• Replaces 150 Watt metal halide / HID / HPS
• Beam angle: 60×60° square beam
• Colour temperature: 3000K (warm white)

Product images
Includes product photography and technical drawing images showing the luminaire and mechanical dimensions.

Technical specifications

• Product SKU: JNFL10-060S-3000-A4-ND
• Power Consumption: 60 W
• System Power: 66 W
• Input Voltage: 100-305 V
• Beam Angle (°): 60°
• Beam Angle Square: 60x60°
• IP Rating: IP65
• IK Impact Rating: IK07
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• Total Lumens Output: 9000 lm
• Color Temperature (K): 3000 K
• Dimming Capability: Non-dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Warranty Period (Years): 5 years
• Number of LED Modules: 1 module
• Environmental Temperature Range: -20°C ~ 45°C
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• LED Driver Brand: Meanwell HLG-60H
• Mounting Type: Adjustable Bracket
• Fixture Height (mm): 366 mm
• Fixture Length (mm): 327 mm
• Fixture Width (mm): 91 mm
• Product Weight: 4 kg
• Packaging - Net Weight (kg): 4 kg
• Packaging - Export Carton Dimensions (mm): 450 x 400 x 380
• Packaging - Products per Carton: 2
• Packaging - Export Carton Gross Weight (kg): 6 kg
