LED floodlight JNFLM20-600S-5000-A6-ND

HIDHPSIP65

Description

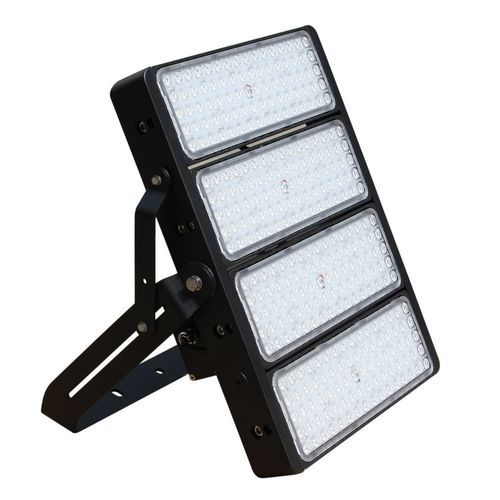

600 W modular LED flood light in 2×4 module configuration (JNFLM20-600S-5000-A6-ND). Equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable. IP65 rated for outdoor and industrial installations. Typical replacement for 1000 W metal halide/HID/HPS luminaires.

Features

• Configuration: 2×4 modules (8 LED modules)
• LED type: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Beam angle: 40×100°
• IP rating: IP65
• Total lumen output: 78,000 lm
• Colour temperature: 6000 K (cool white)
• Housing material: Die-cast aluminum; housing colour: Black
• IK impact rating: IK08
• Power factor > 0.95
• Input voltage: 100–277 V
• Input frequency: 50/60 Hz
• Operating temperature: -20 °C to 45 °C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years

Packaging & Shipping
Product Dimensions (mm): 326×128×113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400×360×230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• Product SKU: JNFLM20-600S-5000-A6-ND
• Power consumption: 600 W
• System power: 606 W
• Input voltage: 100–277 V
• Input frequency: 50/60 Hz
• Beam angle (°): 40×100°
• IP rating: IP65
• IK impact rating: IK08
• Color Rendering Index (CRI): > 80
• Total luminous flux: 78,000 lm
• Color temperature (K): 6000 K
• LED type: Philips Lumileds (Luxeon TX)
• LED driver brand: Meanwell
• Dimming capability: Non-dimmable
• Housing colour: Black
• Housing material: Die-cast aluminum
• Power factor: > 0.95
• Number of LED modules: 8
• Mounting type: Adjustable bracket mount
• Fixture height: 113 mm
• Fixture length: 326 mm
• Fixture width: 128 mm
• Product weight: 17.2 kg
• Operating temperature range: -20 °C to 45 °C
• Working humidity range: 10%–90% RH
• Lifespan (hours): 50,000 hours
