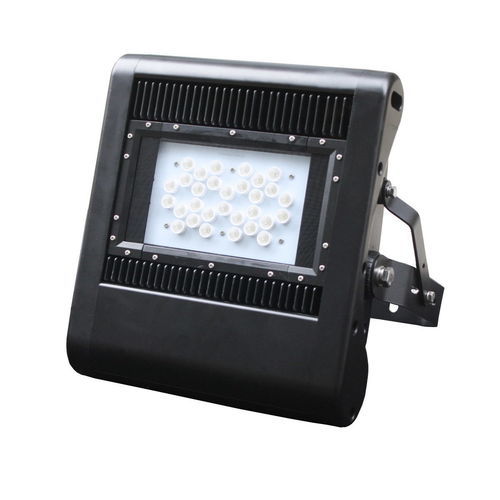

LED floodlight JNFL10-060S-3500-A2-DIM

HIDHPSIP65

Short description
60 Watt LED flood light featuring original Philips Lumileds and a Meanwell HLG-60H driver. Warm white 3500 K, dimmable, IP65 rated for outdoor use. Typical retrofit for 150 W metal halide/HID/HPS luminaires.

Features

• Original Philips Lumileds LEDs for consistent flux and color
• Meanwell HLG-60H LED driver, dimmable
• 30x30° square beam via single lens/PCB configuration
• IP65 ingress protection and IK07 impact rating for outdoor installations
• High power factor >0.95 and long lifetime (~50,000 hours)

Product Specifications (table)
Product SKU: JNFL10-060S-3500-A2-DIM
Power Consumption: 60 W
System Power: 66 W
Input Voltage: 100-305 V
Total Lumens Output: 9000 lm
Color Temperature: 3500 K (warm white)
Beam Angle (°): 30° (30x30° square)
LED Type: Philips Lumileds
LED Driver Brand: Meanwell HLG-60H
Color Rendering Index: >70
Power Factor: >0.95
IP Rating: IP65
IK Impact Rating: IK07
Dimming Capability: Dimmable
Housing Colour: Black
Fixture Height x Length x Width: 366 mm x 327 mm x 91 mm
Product Weight: 4 kg
Environmental Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours
Warranty Period (Years): 5

Specification details (summary)
60 W LED floodlight delivering approximately 9000 lm in warm white (3500 K). Equipped with Philips Lumileds and a Meanwell HLG-60H driver, designed for outdoor applications with IP65 protection and IK07 impact resistance. Square 30x30° beam from a single-lens/PCB module and adjustable mounting bracket make it suitable for targeted lighting and retrofit of 150 W HID fixtures.

Technical specifications

• SKU: JNFL10-060S-3500-A2-DIM
• Rated power: 60 W (system power 66 W)
• Input voltage: 100-305 V
• Light output: 9000 lm
• Color temperature: 3500 K (warm white)
• Beam angle: 30° (30x30° square)
• LED type: Philips Lumileds
• Driver: Meanwell HLG-60H
• CRI: >70
• Dimmable: Yes
• IP rating: IP65
• IK rating: IK07
• Power factor: >0.95
• Lifetime: 50,000 hours
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%-90% RH
• Mounting: Adjustable bracket
• Dimensions (H x L x W): 366 mm x 327 mm x 91 mm
• Net weight: 4 kg
• Warranty: 5 years
