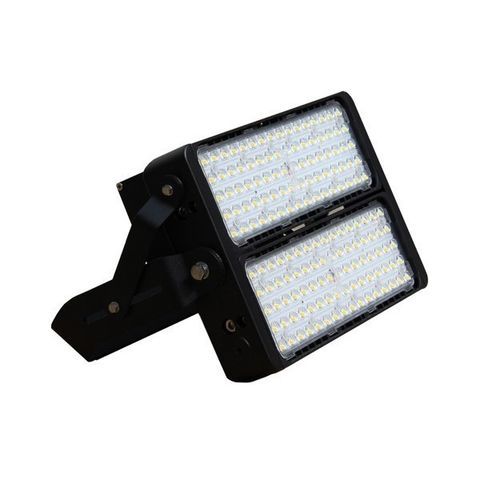

LED floodlight JNFLM14-200S-5000-A7-ND

IP65IK 08bracket-mounted

Product overview
The JNFLM14-200S-5000-A7-ND is a 200W modular LED flood light (1×3 module configuration) providing 26,000 lm of cool white light (6000 K). IP65 and IK08 rated die-cast aluminium housing, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable. Designed as a direct replacement for 400W HID/HPS fixtures in industrial and outdoor installations.

Key features

• Nominal power: 200 W (system power 206 W)
• High luminous output: 26,000 lm
• Beam angle: 50×140° for wide asymmetric illumination
• LEDs: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Ingress protection: IP65 / Impact rating: IK08
• Color temperature: 6000 K (cool white) / CRI >80
• Input voltage: 100–277 V, 50/60 Hz
• Power factor >0.95
• Operating range: -20°C to 45°C, 10%–90% RH
• Lifespan: up to 50,000 hours / Warranty: 5 years
• Mounting: adjustable bracket

Technical specifications

• SKU: JNFLM14-200S-5000-A7-ND
• Power consumption: 200 W
• System power: 206 W
• Input voltage: 100–277 V
• Input frequency: 50/60 Hz
• LED type: Philips Lumileds (Luxeon TX)
• LED driver brand: Meanwell driver(s)
• Total luminous flux: 26,000 lm
• Color temperature: 6000 K
• Color rendering index (CRI): >80
• Beam angle: 50×140°
• IK rating: IK08
• IP rating: IP65
• Power factor: >0.95
• Housing material: Die-cast aluminium
• Housing colour: Black
• Mounting type: Adjustable bracket mount
• Fixture dimensions (L×W×H): 326 × 128 × 113 mm
• Product weight: 8.2 kg
• Environmental / working temperature range: -20°C to 45°C
• Working humidity range: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty period: 5 years

Packaging & shipping

• Product dimensions (mm): 326 × 128 × 113
• Net weight (kg): 8.2
• Export carton dimensions (mm): 400 × 360 × 230
• Products per carton: 1
• Export carton gross weight (kg): 8

Recommended applications

• Industrial site and yard lighting
• Perimeter and security lighting
• Facade and architectural illumination
• Warehouse exterior and loading areas
• Sports facilities and outdoor arenas
