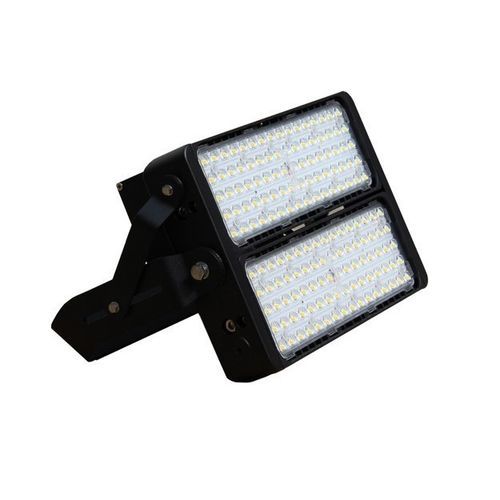

LED floodlight JNFLM14-200S-6500-A7-ND

HIDHPSIP65

Description
200W modular LED flood light, configuration 1×3 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Non-dimmable. IP65. Replaces 400 Watt metal halide/HID/HPS.

Product Specifications (from page)
Product SKU: JNFLM14-200S-6500-A7-ND
Power Consumption: 200 W
Input Voltage: 100-277V
Beam Angle (°): 50x140°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 26000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 206 W
Number of LED Modules: 1 modules
Beam Angle Square: 50x140°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 8.2 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical features / specifications

• Power Consumption: 200 W
• Input Voltage: 100-277V
• Beam Angle: 50x140°
• IP Rating: IP65
• CRI: >80
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens: 26000 lm
• Colour Temperature: 6000 K
• IK Rating: IK08
• Dimming: Dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Housing Material: Die-cast Aluminum
• Warranty: 5 years
• System Power: 206 W
• Number of LED Modules: 1
• Environmental Temperature Range: -20°C ~ 45°C
• Mounting Type: Adjustable Bracket Mount
• Fixture Dimensions (H×L×W): 113×326×128 mm
• Product Weight: 8.2 kg
• LED Driver Brand: Meanwell
• Working Humidity Range: 10%-90% RH
• Lifespan: 50,000 hours
