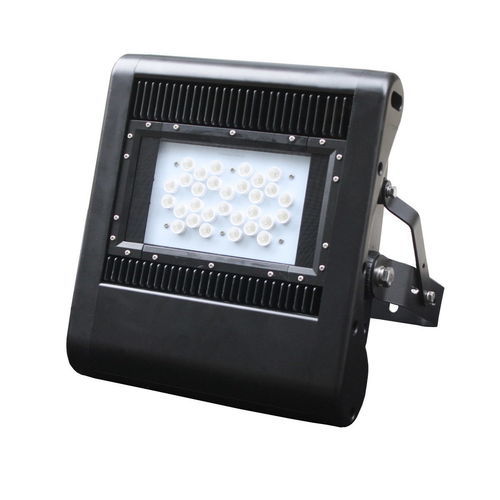

LED floodlight JNFL10-060S-3000-A5-ND

IP65bracket-mountedenergy efficiency

Product short description
60 W LED flood light equipped with original Philips Lumileds and a Meanwell HLG-60H driver. Non-dimmable, IP65-rated for outdoor use. Energy-efficient replacement for 150 W metal halide/HID/HPS luminaires.

Product Specifications (table)
Product SKU: JNFL10-060S-3000-A5-ND
Power Consumption: 60 W
Input Voltage: 100-305 V
Beam Angle (°): 60° (60x135° square)
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 9000 lm
Color Temperature (K): 3000 K
IK Impact Rating: IK07
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
System Power: 66 W
Number of LED Modules: 1 module
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket
Fixture Height (mm): 366 mm
Fixture Length (mm): 327 mm
Fixture Width (mm): 91 mm
Product Weight: 4 kg
LED Driver Brand: Meanwell HLG-60H
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Specification details (text)
The single-module PCB design with a single lens and a 60×135° optical distribution provides a wide rectangular beam suitable for area, façade and canopy lighting. The adjustable mounting bracket allows precise aiming. IP65 and IK07 ratings make the fixture suitable for outdoor industrial and commercial installations. The integrated Meanwell HLG-60H driver ensures stable performance across 100–305 V supply. Expected lifespan is 50,000 hours, offering significant energy and maintenance savings compared with 150 W HID sources.

Technical features

• Product SKU: JNFL10-060S-3000-A5-ND
• Power Consumption: 60 W
• Input Voltage: 100-305 V
• Beam Angle: 60° (60x135° square)
• IP Rating: IP65
• CRI: >70
• LED Type: Philips Lumileds
• Total Lumens Output: 9000 lm
• Colour Temperature: 3000 K (warm white)
• IK Rating: IK07
• Dimming Capability: Non-dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Warranty: 5 years
• System Power: 66 W
• Number of LED Modules: 1 module
• Environmental Temperature Range: -20°C to 45°C
• Working Humidity Range: 10% - 90% RH
• Mounting Type: Adjustable Bracket
• Fixture Dimensions (H×L×W): 366 mm × 327 mm × 91 mm
• Product Weight: 4 kg
• LED Driver Brand: Meanwell HLG-60H
• Lifespan: 50,000 hours
