LED floodlight JNFL10-060S-3000-A6-DIM

IP65IK 07outdoor

Overview

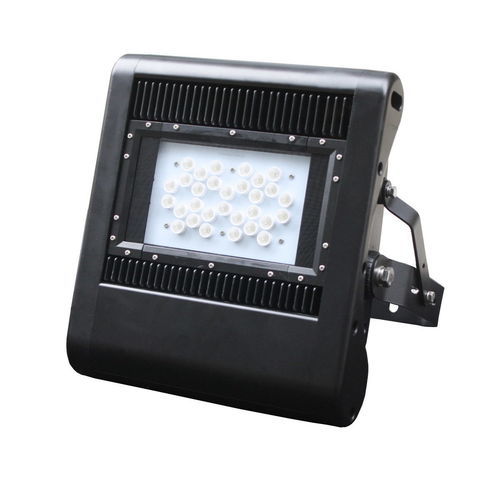

60 W LED flood light fitted with Philips Lumileds LEDs and a Meanwell HLG-60H driver. Warm white 3000 K, 9000 lm output, dimmable, IP65 and IK07 rated. Designed to replace 150 W metal halide/HID fixtures in outdoor and industrial applications with a long service life of 50,000 hours.

Technical specifications

• SKU: JNFL10-060S-3000-A6-DIM
• Power consumption: 60 W (system power 66 W)
• Input voltage: 100-305 V AC
• Luminous flux: 9000 lm
• Color temperature: 3000 K (warm white)
• CRI: >70
• Beam angle: 85×135° (single lens / PCB module)
• IP rating: IP65
• IK rating: IK07
• LED type: Philips Lumileds
• LED driver: Meanwell HLG-60H
• Power factor: >0.95
• Mounting: Adjustable bracket
• Dimensions (H×L×W): 366×327×91 mm
• Weight: 4 kg
• Operating temperature: -20°C to 45°C
• Working humidity: 10%-90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years

Applications

• Outdoor site and perimeter lighting
• Warehouse aisles and industrial yards
• Facade, signage and architectural accent lighting
• Parking areas, loading bays and docks

Packaging & logistics

• Net weight: 4 kg
• Export carton dimensions: 450×400×380 mm
• Products per carton: 2
• Export carton gross weight: 6 kg
