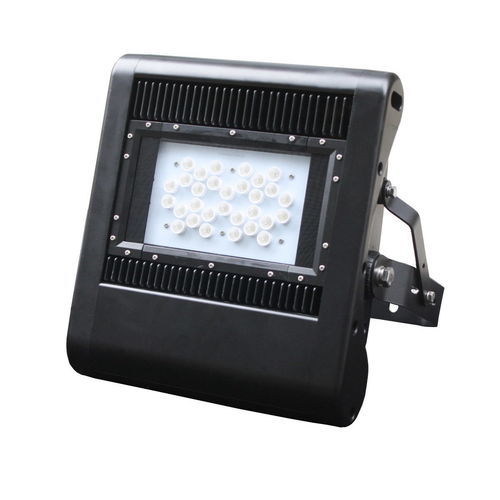

LED floodlight JNFL10-060S-3500-A3-ND

HIDHPSIP65

Product description
60 Watt LED flood light equipped with Philips Lumileds LEDs and a Meanwell HLG-60H driver. Non-dimmable, IP65 rated for outdoor use. Designed to replace 150 W metal halide/HID/HPS luminaires and provide long-life, energy-efficient warm white lighting at 3500 K.

Features

• LED type: Philips Lumileds
• Driver: Meanwell HLG-60H
• Power consumption: 60 W (system power 66 W)
• Warm white colour temperature: 3500 K
• Total luminous flux: 9000 lm
• Beam angle (square): 40x40° (beam angle: 40°)
• High power factor >0.95
• CRI >70
• IP65 ingress protection
• IK07 impact rating
• Non-dimmable
• Mounting: adjustable bracket
• Warranty: 5 years
• Lifespan: 50,000 hours

Product specifications (table)
Product SKU: JNFL10-060S-3500-A3-ND
Power Consumption: 60 W
Input Voltage: 100-305 V
Beam Angle (°): 40°
Beam Angle Square: 40x40°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 9000 lm
Color Temperature (K): 3500 K
IK Impact Rating: IK07
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
System Power: 66 W
Number of LED Modules: 1 module
Environmental Temperature Range: -20°C ~ 45°C
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Mounting Type: Adjustable Bracket
Fixture Height (mm): 366 mm
Fixture Length (mm): 327 mm
Fixture Width (mm): 91 mm
Product Weight: 4 kg
LED Driver Brand: Meanwell HLG-60H
Lifespan (Hours): 50,000 hours

Packaging & shipping
Net Weight (kg): 4 kg
Export Carton Dimensions (mm): 450 x 400 x 380
Products per Carton: 2
Export Carton Gross Weight (kg): 6 kg

Technical specifications

• SKU: JNFL10-060S-3500-A3-ND
• Power: 60 W (system 66 W)
• Voltage: 100-305 V
• Lumens: 9000 lm
• CCT: 3500 K (warm white)
• CRI: >70
• LED: Philips Lumileds
• Driver: Meanwell HLG-60H
• Beam angle: 40x40°
• IP rating: IP65
• IK rating: IK07
• Power factor: >0.95
• Dimming: Non-dimmable
• Mounting: Adjustable bracket
• Dimensions (H x L x W): 366 x 327 x 91 mm
• Weight: 4 kg
• Operating temp: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
