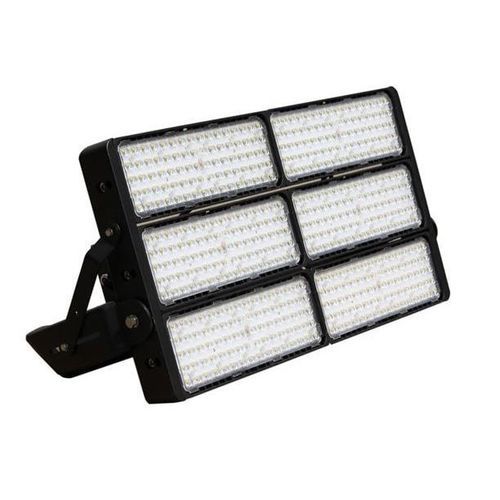

LED floodlight JNFLM18/6-400S-6500-A8-DIM

HIDHPSIP65

Product Overview
400W modular LED flood light, configuration 1×6 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Dimmable. IP65. Replaces 1000 Watt metal halide/HID/HPS.

Features

• Modular design: 1×6 modules
• LED type: Philips Lumileds (Luxeon TX)
• Driver: Meanwell driver(s)
• Dimmable
• Ingress protection: IP65
• Beam angle: 140×140° (square)
• Replaces 1000W metal halide / HID / HPS

Product Specifications
Product SKU: JNFLM18/6-400S-6500-A8-DIM
Power Consumption: 400 W
Input Voltage: 100-277V
Beam Angle (°): 140x140°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 406 W
Number of LED Modules: 1 modules
Beam Angle Square: 140x140°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg
Fixture Height (mm): 113
Fixture Width (mm): 128
Fixture Length (mm): 326

Caractéristiques / spécifications techniques

• Power: 400 W
• System Power: 406 W
• Lumens: 52,000 lm
• Colour Temperature: 6000 K (cool white)
• CRI: >80
• Beam angle: 140×140° (square)
• LEDs: Philips Lumileds (Luxeon TX)
• Driver: Meanwell
• Input Voltage: 100-277V, 50/60 Hz
• Power Factor: >0.95
• IP Rating: IP65
• IK Rating: IK08
• Housing: Die-cast Aluminum, Black
• Mounting: Adjustable Bracket Mount
• Operating Temp: -20°C to 45°C
• Humidity: 10%-90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
• Dimensions (L×W×H): 326×128×113 mm
• Weight: 17.2 kg
