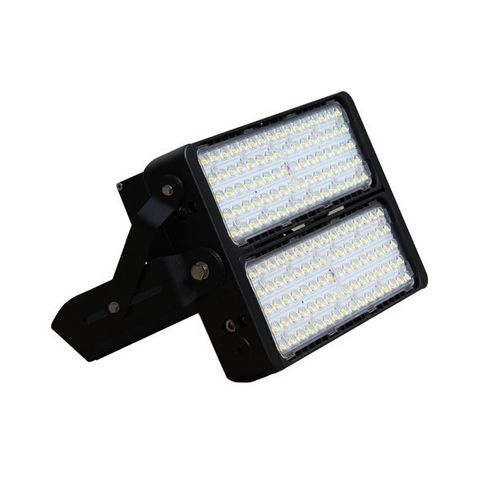

LED floodlight JNFLM14-200S-6500-A6-DIM

HIDHPSIP65

Product overview
200W modular LED flood light in a 1×3 module configuration, equipped with original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, cool white 6000 K, high lumen output (26,000 lm). IP65 rated with IK08 impact resistance. Designed to replace 400 W metal halide/HID/HPS fixtures for industrial and outdoor applications. Typical mounting via adjustable bracket; lifespan approx. 50,000 hours with 5-year warranty.

Features

• Original Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• Dimmable
• IP65 ingress protection
• Replaces 400 W metal halide/HID/HPS
• High lumen output: 26,000 lm
• Colour temperature: 6000 K (cool white)
• Beam angle: 40×100°
• IK08 impact rating
• Die-cast aluminium housing in black
• Adjustable bracket mount
• Long lifespan: 50,000 hours
• 5-year warranty

Product Specifications
Product SKU: JNFLM14-200S-6500-A6-DIM
Power Consumption: 200 W
System Power: 206 W
Input Voltage: 100-277 V
Input Frequency: 50/60 Hz
Beam Angle (°): 40×100°
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 26,000 lm
Color Temperature (K): 6000 K
Dimming Capability: Dimmable
Power Factor: >0.95
Housing Colour: Black
Housing Material: Die-cast Aluminum
Number of LED Modules: 1 module (1×3 configuration)
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 8.2 kg
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326×128×113 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 400×360×230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• SKU: JNFLM14-200S-6500-A6-DIM
• Power Consumption: 200 W (System Power 206 W)
• Voltage: 100-277 V
• Beam Angle: 40×100°
• IP Rating: IP65
• CRI: >80
• LED Type: Philips Lumileds (Luxeon TX)
• Lumens: 26,000 lm
• Colour Temperature: 6000 K
• IK Rating: IK08
• Dimming: Dimmable
• Housing: Die-cast Aluminum, Black
• Power Factor: >0.95
• Frequency: 50/60 Hz
• Warranty: 5 years
• Dimensions (L×W×H): 326×128×113 mm
• Weight: 8.2 kg
• Operating Temperature: -20°C to 45°C
• Working Humidity: 10%–90% RH
• Lifespan: 50,000 hours
