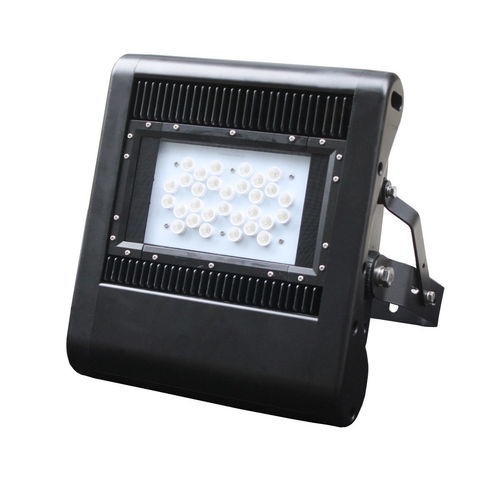

LED floodlight JNFL10-060S-3000-A1-DIM

HIDHPSIP65

Short description
60 W LED flood light fitted with Philips Lumileds LEDs and a Meanwell HLG-60H driver. Warm white (3000 K), dimmable, IP65 rated for outdoor use. Compact design with adjustable bracket; replaces 150 W metal halide/HID/HPS fixtures.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-60H LED driver
• Dimmable
• IP65 weatherproof rating
• High lumen output: 9000 lm
• Compact housing with adjustable mounting bracket
• Long lifespan: 50,000 hours
• 5-year warranty

Product specifications (table)
Product SKU: JNFL10-060S-3000-A1-DIM
Power Consumption: 60 W
Input Voltage: 100-305 V
Beam Angle (°): 15°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 9000 lm
Colour Temperature (K): 3000 K
IK Impact Rating: IK07
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
System Power: 66 W
Number of LED Modules: 1 module
Beam Angle Square: 15x15°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket
Fixture Height (mm): 366 mm
Fixture Length (mm): 327 mm
Fixture Width (mm): 91 mm
Product Weight: 4 kg
LED Driver Brand: Meanwell HLG-60H
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping (table)
Net Weight (kg): 4 kg
Export Carton Dimensions (mm): 450x400x380
Products per Carton: 2
Export Carton Gross Weight (kg): 6 kg
Fixture Height (mm): 366
Fixture Width (mm): 91
Fixture Length (mm): 327

Technical specifications

• SKU: JNFL10-060S-3000-A1-DIM
• Power: 60 W (System Power 66 W)
• Voltage: 100-305 V
• Lumens: 9000 lm
• Colour Temperature: 3000 K (warm white)
• Beam Angle: 15×15° (single lens)
• LED Type: Philips Lumileds
• Driver: Meanwell HLG-60H
• IP Rating: IP65
• IK Rating: IK07
• PF: >0.95
• Dimming: Dimmable
• Dimensions (H×L×W): 366 × 327 × 91 mm
• Weight: 4 kg
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Lifetime: 50,000 hours
• Warranty: 5 years
