LED floodlight JNFLM20-600S-6500-A4-DIM

HIDHPSIP65

Short description

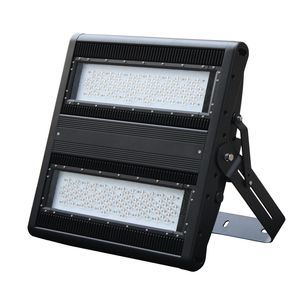

600W modular LED flood light in a 2×4 module configuration featuring original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, cool white 6000K, 90×90° beam angle and IP65 protection. Designed as an energy-efficient replacement for 1000W metal halide/HID/HPS fixtures.

Features

• Modular 2×4 LED module configuration
• Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• Dimmable
• 90×90° square beam
• IP65 ingress protection
• IK08 impact rating

Specification Details
The JNFLM20-600S-6500-A4-DIM delivers 78,000 lm total output at 600W power consumption (system power 606 W), with a high power factor >0.95 and CRI >80. Operating range -20°C to 45°C and an expected lifespan of approximately 50,000 hours. Die-cast aluminum housing with adjustable bracket mount for flexible installation.

Product Specifications

• Product SKU: JNFLM20-600S-6500-A4-DIM
• Power Consumption: 600 W
• System Power: 606 W
• Input Voltage: 100-277 V
• Input Frequency: 50/60 Hz
• Beam Angle: 90×90°
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens Output: 78,000 lm
• Color Temperature: 6000 K (cool white)
• Color Rendering Index (CRI): >80
• IP Rating: IP65
• IK Rating: IK08
• Dimming Capability: Dimmable (with compatible driver)
• Housing Material: Die-cast aluminum
• Housing Colour: Black
• Power Factor: >0.95
• Number of LED Modules: 2×4 modules
• Environmental Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10%-90% RH
• Mounting Type: Adjustable bracket mount
• Fixture Dimensions (HxLxW): 113 x 326 x 128 mm
• Product Weight: 17.2 kg
• LED Driver Brand: Meanwell
• Lifespan: 50,000 hours

Packaging & Shipping

• Product Dimensions (mm): 326 x 128 x 113
• Net Weight: 17.2 kg
• Export Carton Dimensions (mm): 400 x 360 x 230
• Products per Carton: 1
• Export Carton Gross Weight: 8 kg
