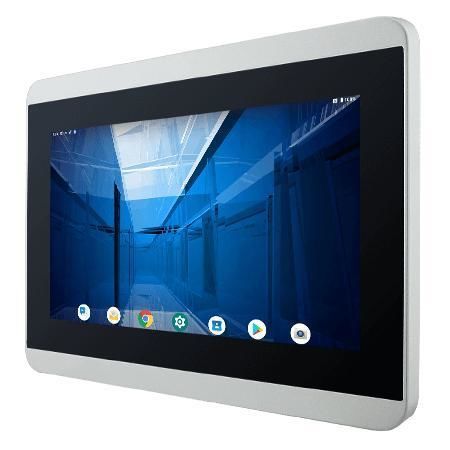

PCAP touchscreen panel PC W07IQ3S-GCO1

multi-touch screentouch screen7"

Overview
The W07IQ3S-GCO1 is a 7-inch front IP65 G-WIN GC-Series panel PC featuring a Qualcomm® Snapdragon™ 660 octa-core CPU, Android 9.0, projected capacitive (PCAP) multi-touch and a fanless design. The true-flat, edge-to-edge front provides easy cleaning and front IP65 protection for industrial deployments. Standard I/O includes USB, serial, LAN and micro SD; micro HDMI, WLAN and Bluetooth are available as options.

Key Features

• Qualcomm Snapdragon™ 660 octa-core 2.2 GHz CPU
• Fanless cooling and ultra-low power consumption
• Front IP65 protection against water and dust
• True-flat, edge-to-edge front surface for easy cleaning
• I/O: 1 x USB 3.0 OTG (Type-C), 2 x USB 2.0 (Type-A), 1 x RS232/422/485, 1 x RJ45 (LAN), 1 x Micro SD slot, 1 x Micro HDMI (optional)

Highlights

• Signature True Flat Surface — Flat, edge-to-edge bezel reduces dust traps and simplifies maintenance.
• PCAP Multi-Touch — Projected capacitive multi-touch screen for precise touch operations and multitouch gestures.
• Android Platform Support — Ships with Android 9.0 for embedded application integration and customization.
• Flexible Mounting — VESA pattern supports wall, desk and in-vehicle installations with full access to I/O.
• Industrial Protection — Front IP65 rating suitable for demanding industrial environments.

Certifications

• CE
• FCC

Accessories

• Quick Start Guide (hardcopy)
• AC adapter 12V/50W
• Power cord
• 3-pin terminal block to DC jack

Product notes

• Designed for industrial HMI and embedded applications requiring frequent cleaning or hygienic front surfaces.
• Fanless design improves reliability in dusty environments and reduces maintenance.
• Android platform supports custom embedded software and system integration.

Specifications

• System: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3GB LPDDR4
• Storage: 32GB eMMC
• Operating System: Android 9.0
• WLAN: Optional
• Bluetooth: Optional
• Display Size: 7 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 600
• Panel Brightness: 1000 cd/m²
• Contrast Ratio: 700:1
• View Angles: 75, 75, 75, 70
• Active Area: 153.6 x 90 mm
• USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial: 1 x RS232/422/485 (Default RS232)
• LAN: 1 x RJ45 (LAN)
• Video: 1 x Micro HDMI (Optional)
• Audio: 1 x Speaker (Optional)
• SD Card Slot: 1 x Micro SD Card Slot
• Certification: CE, FCC
• Power Rating: 12V DC via Terminal Block
• Adapter: 12V 50W
• Dimension: 189.4 x 145.4 x 39.8 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Aluminum
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% (Non-Condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -20 ~ 60°C
• Shock: MIL-STD-810G Method 516.6
• Vibration: MIL-STD-810G Method 514.6
• IP Rating: Front IP65
• Included Accessories: Quick Start Guide (Hardcopy), AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack
