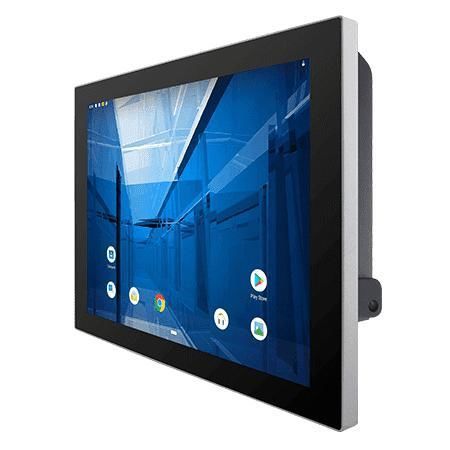

PCAP touchscreen panel PC R15IM3S-GCC3

multitouch screen15"Arm® Cortex®-A53 Quad-core

Overview The R15IM3S-GCC3 is a 15-inch G-WIN GC-Series front IP65 PCAP panel PC. It features an ARM A53 Quad Core 2.0GHz processor, fanless thermal design and ultra-low power consumption. The front side provides a true flat edge-to-edge surface with IP65 protection for water and dust resistance. The platform supports Android or Linux and offers versatile mounting options including panel mount and VESA.

Key Features

• ARM A53 Quad Core 2.0GHz CPU
• Fanless cooling and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat edge-to-edge front surface for easy cleaning and maintenance
• Rich I/O: 1 x Micro USB (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45 LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Support for Android or Linux operating systems

Design & Operation

• True flat front: edge-to-edge bezel reduces dust/liquid ingress and simplifies cleaning and maintenance
• PCAP multi-touch: projected capacitive touch delivers accurate multi-touch interactions suitable for HMI and interactive applications
• Software support: ships with Android (default); optional Linux Yocto or Ubuntu Server for embedded or server use
• Mounting flexibility: panel mount and VESA mount for wall, desk or in-vehicle installations with easy I/O access
• Industrial readiness: meets front IP65 rating and MIL-STD shock/vibration for demanding environments

Certifications

• CE
• FCC

Technical specifications

• Display: Projected Capacitive Multi Touch
• Display size: 15.0 inches
• Resolution: 1024 x 768
• Panel brightness: 300 nits (default); 1000 nits (optional)
• Contrast ratio: 2000:1
• View angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating system: Android 11 (upgradeable to Android 13) default; Linux Yocto 5.15.47 + Qt 5.15 (optional); Linux Ubuntu Server 22.04 (optional)
• WLAN/Bluetooth: optional
• USB ports: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial port: 1 x RS232/422/485 (default RS232)
• LAN: 1 x 10/100/1000 Mbps
• Video output: 1 x Micro HDMI (optional)
• Audio: 2 x speaker (optional)
• SD card: 1 x Micro SD slot (max 32 GB)
• Power: 12V DC via terminal block (default); 9~36V optional
• Adapter: 12V 50W
• Dimensions: 363 x 278 x 45 mm
• Cut out: 349 x 263 mm
• Mounting: panel mount; VESA mount
• Enclosure: aluminum
• Cooling: fanless design
• Operating humidity: 10% to 90% RH non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• Front IP rating: IP65

Accessories & Options

• Included: Quick Start Guide (hardcopy), AC adapter 12V/50W, power cord, 3-pin terminal block to DC jack
• Optional: Micro HDMI, 2 x speakers, WLAN/Bluetooth modules, 9~36V wide input, additional mounting accessories
