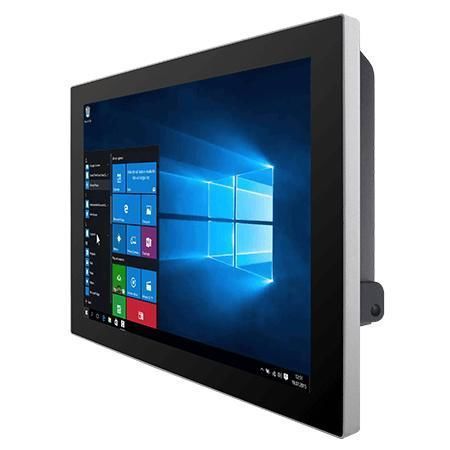

PCAP touchscreen panel PC R15IP3S-GCC3

multitouch screentouch screen15"

Overview
The R15IP3S-GCC3 is a 15-inch front IP65 PCAP panel PC designed for industrial and kiosk applications requiring a flat, easy-to-clean front surface, fanless operation and multiple mounting options.

Key features

• 15.0-inch 1024 x 768 projected capacitive (PCAP) multi-touch display
• Intel® Pentium® N4200 (Apollo Lake) processor
• Fanless design with passive cooling fins
• Dual Intel® Gigabit Ethernet controllers
• Front IP65 protection against dust and water splash
• Universal mounting: VESA (default) and optional panel mount

Certifications

• CE
• FCC

Product presentation
The device features a true flat, edge-to-edge aluminum front that simplifies cleaning and prevents liquid ingress. Front IP65 rating secures the display against dust and splash for use in harsh or public environments. The fanless architecture with passive fins reduces noise and power draw while increasing reliability. Standard VESA mounting and optional panel mount support wall, desk and in-vehicle installations.

Technical specifications

• Display: 15.0 inches, Projected Capacitive Multi-Touch, 1024 x 768, 300 nits, 2000:1 contrast, Active Area 304.1 x 228.1 mm, View angles 88/88/88/88
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB (default), 8 GB (optional)
• Storage: 128 GB SSD (default); optional 256/512 GB SSD, 1 TB
• Ethernet: 2 x Intel® Gigabit Ethernet controllers
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit, optional); Linux Ubuntu 20.04 (optional)
• Wireless: WLAN / Bluetooth support (optional)
• IO: 2 x USB 3.0, 1 x RS232 (default) / 422 / 485, 2 x RJ45 (1 x 10/100/1000), Audio 2 x Speaker
• Environmental: Operating 0°C to 50°C, Storage -20°C to 60°C, Humidity 10%–90% RH non-condensing, Shock/Vibration MIL-STD-810G
• Mechanical: 363.4 x 277.86 x 44.5 mm; Metal enclosure; VESA mount (default), Panel mount (optional)
• Power: 12 V DC via 3-pin terminal block; AC adapter 12 V/50 W

Accessories

• Quick Start Guide (hardcopy)
• AC adapter 12V/50W, power cord
• 3-pin terminal block to DC jack
