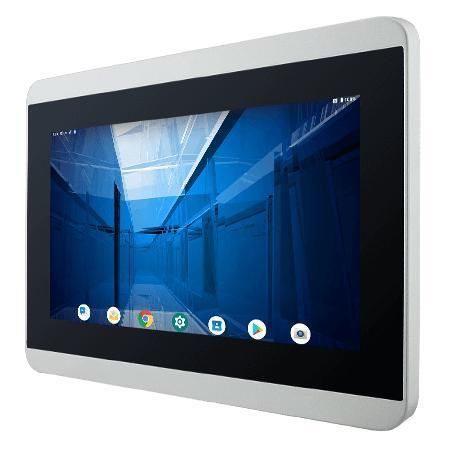

PCAP touchscreen panel PC W07IQ3S-GCT1

multi-touch screen7"Qualcomm Snapdragon 660

Overview
The Winmate W07IQ3S-GCT1 is a 7-inch G-WIN GC-Series front IP65 projected-capacitive (PCAP) panel PC powered by Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz). It features a true flat edge-to-edge front, front IP65 protection, fanless cooling for low power and silent operation, Android support for embedded applications, and flexible mounting options (panel mount default, optional VESA). Ideal for compact industrial HMI and embedded edge applications.

Key Features

• Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz CPU
• Projected-capacitive (PCAP) multi-touch screen, true-flat front
• Front IP65 protection against water and dust
• Fanless design for ultra-low power and silent operation
• Flexible I/O: USB3.0 Type-C (OTG), 2x USB2.0, RS232/422/485, RJ45 LAN, Micro SD, Micro HDMI (optional)
• Android 9.0 support for embedded/custom applications

Certifications

• CE
• FCC

Highlights / Product Details
True-flat, edge-to-edge front simplifies cleaning and reduces ingress points.
PCAP multi-touch provides responsive multi-finger operation for modern HMI interfaces.
Android 9.0 platform enables rapid integration of embedded applications and custom UIs.
Panel mount (default) with optional VESA pattern supports wall, desk or in-vehicle installations while keeping I/O accessible.
Front IP65 rating and MIL-STD-810G shock/vibration levels make the unit suitable for industrial environments.

System Specification (table view)

• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: 32 GB eMMC onboard
• Operating System: Android 9.0
• WLAN / Bluetooth: optional

Display (table view)

• Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi-Touch
• Resolution: 1024 x 600
• Brightness: 320 nits
• Contrast Ratio: 1000:1
• Active Area: 153.6 x 90 mm

I/O Ports (table view)

• USB: 1 x USB 3.0 (Type-C OTG), 2 x USB 2.0 (Type A)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 (USB to LAN AX88178A)
• Video: 1 x Micro HDMI (optional)
• SD Card: 1 x Micro SD slot
• Audio: 1 x Speaker (optional)

Power (table view)

• Power rating: 12 V DC via terminal block
• Adapter: 12 V 50 W

Mechanical (table view)

• Dimensions: 189.4 x 145.4 x 39.8 mm
• Enclosure: Aluminum
• Mounting: Panel mount (default), VESA mount (optional)
• Cooling: Fanless design

Environment & Ruggedness (table view)

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65

Accessories

• Quick Start Guide (hardcopy)
• AC adapter 12V/50W
• Power cord
• 3-pin terminal block to DC jack

Control

• 1 x Power button (optional)

Technical specifications

• Model: W07IQ3S-GCT1
• Brand: Winmate
• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: 32 GB eMMC onboard
• OS: Android 9.0
• Display: 7.0", 1024 x 600, 320 nits, PCAP multi-touch
• I/O: USB3.0 Type-C (OTG), 2 x USB2.0, RS232/422/485, LAN, Micro HDMI (opt.), Micro SD
• Power: 12 V DC (Terminal Block), adapter 12 V 50 W
• Dimensions: 189.4 x 145.4 x 39.8 mm
• Mounting: Panel mount (default), VESA optional
• Enclosure: Aluminum
• Ruggedness: Front IP65, fanless, MIL-STD-810G shock & vibration
• Certifications: CE, FCC
